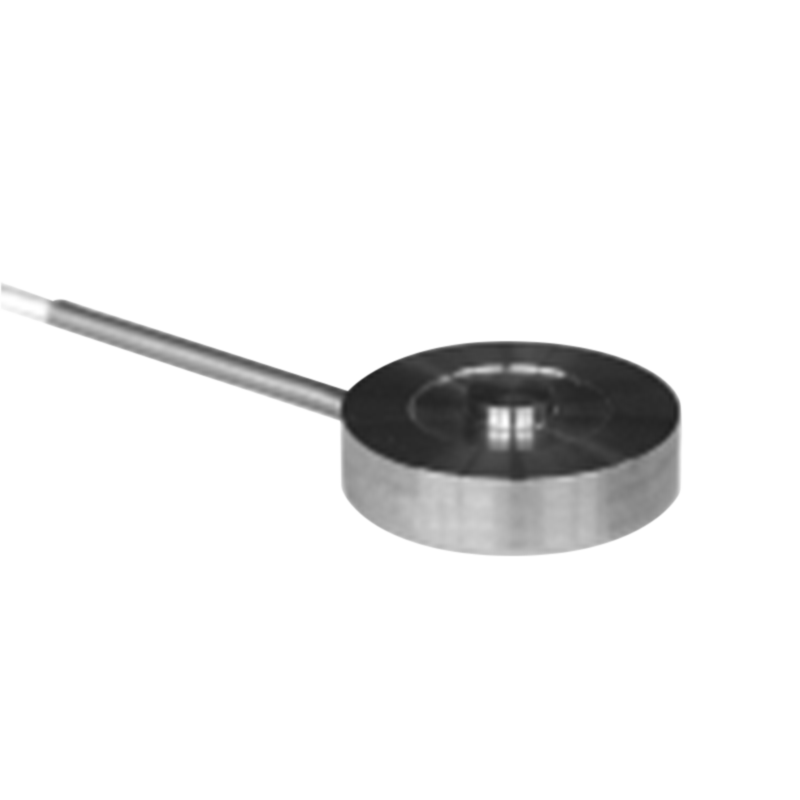

FN2640 Pancake Force Sensor

Specially designed for overseeing manufacturing processes

View technical specifications

Key features

  • Compression only
  • Small size and flat design
  • Spherical load button
  • Easy installation
  • Membrane loadcell design
  • Stainless steel or aluminium

About the FN2640 Pancake Force Sensor

The FN2640 is specially designed for overseeing manufacturing processes.

It measures with high consistency the regularity of compression load generated when fitting pieces. With its compact design and robust construction, the sensor easily integrates into industrial environments for use in applications such as printing, embossing, or other mounting controls. The FN2640 features a spherical load button for better load distribution.

To meet your needs we also offer complete turnkey systems. The matched components (sensor, power, amplifier and digital display) are formatted, calibrated and ready for immediate use.

Applications for FN2640

  • Process control equipment
  • Printing embossing
  • Laboratory and research

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Request a quotation

Always the right sensor solution.

  • Free and independent advice for your application
  • Tailor-made offer
  • Development of standard and customised solutions
  • Fast response time

FN2640 Pancake Force Sensor

 Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Accuracy 1% FS
Load direction Compression
Operating temperature -20 - 80°C
Output 1mV/V
Protection IP50
Range 100N, 250N, 500N, 1kN, 2.5kN, 5kN, 10kN, 25kN, 50kN
