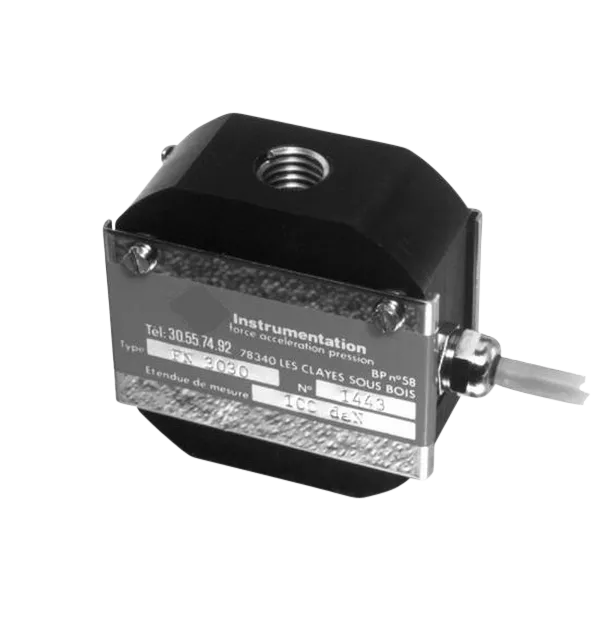

FN3030 S-beam Force Sensor
Well suited for customization
Key features
- Tension and Compression
- Optional Rod Ends
- Accuracy : 0.1% F.S.
- High Level Output Model with Integrated Amplifier
- Low Cost
About the FN3030 S-beam Force Sensor
The FN3030 measures tension and compression in standard ranges from 0-50N to 0-100.000N. The FN3030 is well suited for customization in industrial applications and protection levels can be upgraded for use in hostile environments. Additionally, for high-level output a model with integrated amplifier is available.
To meet your needs we also offer complete turnkey systems. The matched components (sensor, power, amplifier and digital display) are formatted, calibrated and ready for immediate use.
Applications for FN3030
- Process Control Equipment
- Weighing Calibration Tool
- Robotics and Effectors
- Laboratory and Research
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Accuracy | 0.1% F.S. |
| Full scale range | 50N, 100N, 200N, 500N, 1kN, 2kN, 5kN, 10kN, 20kN, 50kN, 100kN |
| Load direction | Tension/compression |
| Material | Body: stainless steel or aluminum alloy, with stainless steel cover |
| Optional high level output model | ±2mV/V, ±2V, ±5V |
| Protection | IP50 |
