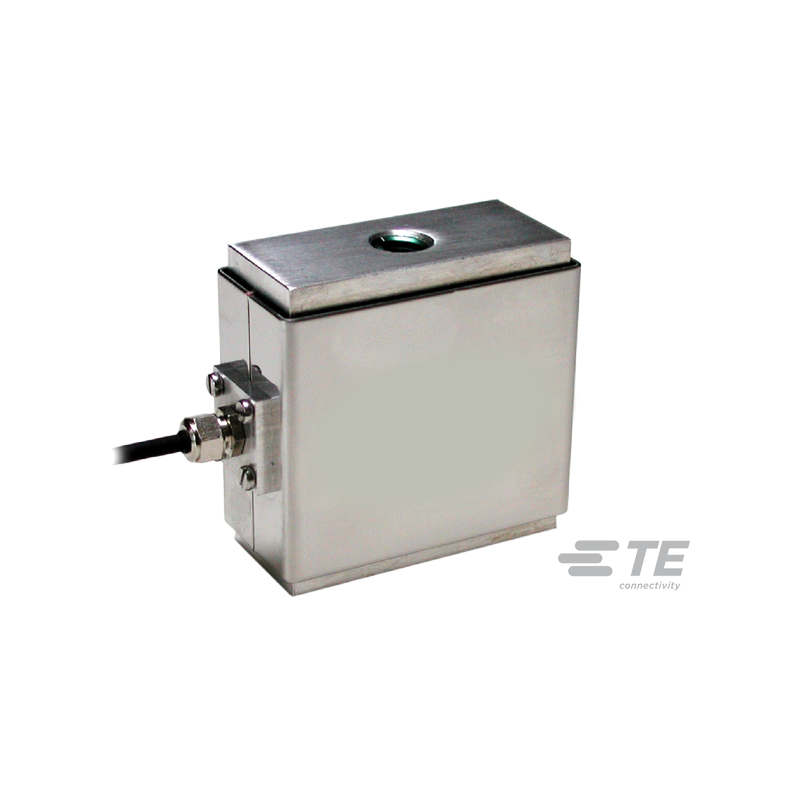

FN3148 S-beam Force Sensor
Integrated mechanical stops
Key features
- High accuracy
- Tension and Compression
- Integrated Mechanical Stops
- Integrated Amplifier optional
- Cable or connector output
- Optional rod ends
About the FN3148 S-beam Force Sensor
The FN3148 high precision load cell features accuracy of 0.05% F.S. It is available in standard ranges from 0-10N to 0-2000N (0-2 lbf to 0-400 lbf). Integrated mechanical stops protect against accidental overloads in tension and compression. For high-level output a model with integrated amplifier is available.
For lower ranges, another sensor, model FN3280, can measure 0-1 to 0-5N (0.2 to 1 lbf). To meet your needs we also offer complete turnkey systems. The matched components (sensor, power, amplifier and digital display) are formatted, calibrated and ready for immediate use.
Applications for FN3148
- Process control equipment
- Medical Instruments
- Weighing
- Laboratory and Research
- Calibration test benches
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Accuracy | < 0.05% F.S. |
| Full scale range | 10N, 50N, 100N, 200N, 500N, 1kN, 2kN |
| High level output | ±2 mV/V, ±2 V, ±5 V |
| Load direction | Tension and compression |
| Materials | Body: aluminum alloy and cover in stainless steel |
| Protection | IP50 |
