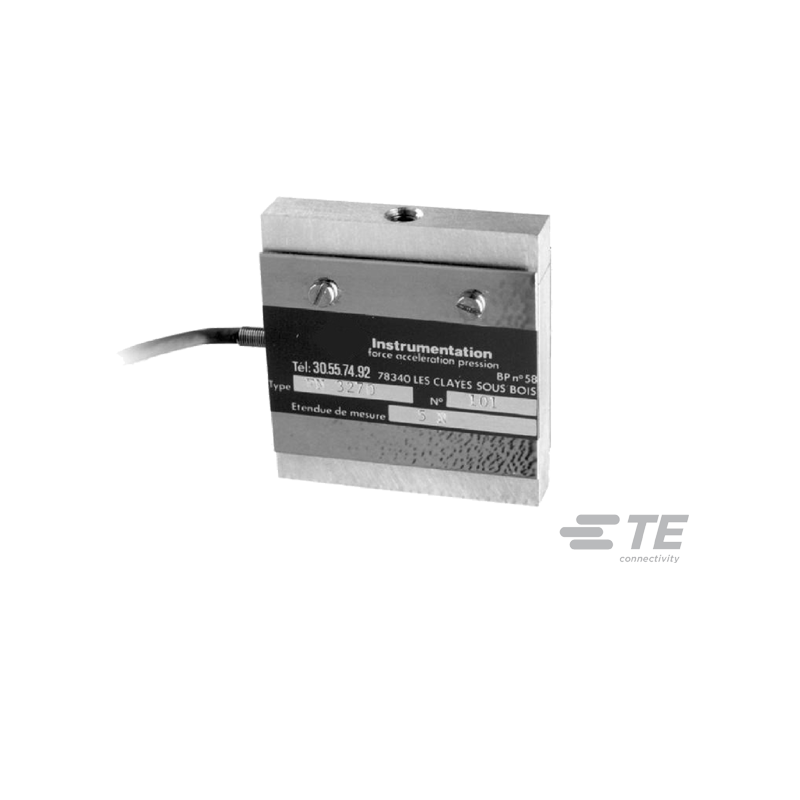

FN3280 S-beam Force Sensor

Designed to measure low force


Key features

  • High accuracy
  • Tension and compression
  • Integrated mechanical stops
  • Full wheatstone bridge
  • Cable output

About the FN3280 S-beam Force Sensor

The FN3280 S-beam load cell is designed to measure low force and has standard ranges of 1 to 5 N [0.2 to 1 lbf].

Integrated mechanical stops protect against accidental overloads up to 100 times F.S. The FN3280 provides a combination of economy and performance, this low cost load cell has an accuracy of 0.1% F.S.

To meet your needs we also offer complete turnkey systems. The matched components (sensor, power, amplifier and digital display) are formatted, calibrated and ready for immediate use.

Applications for FN3280

  • Process control equipment
  • Medical instruments
  • Weighing
  • Laboratory and research
  • Calibration test benches

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Accuracy 0.1% F.S.
Full scale range 1N, 2N, 5N
Load direction Tension and compression
Material Body and cover in aluminum alloy
Output signal ±1.5 mV/V
Protection IP50
