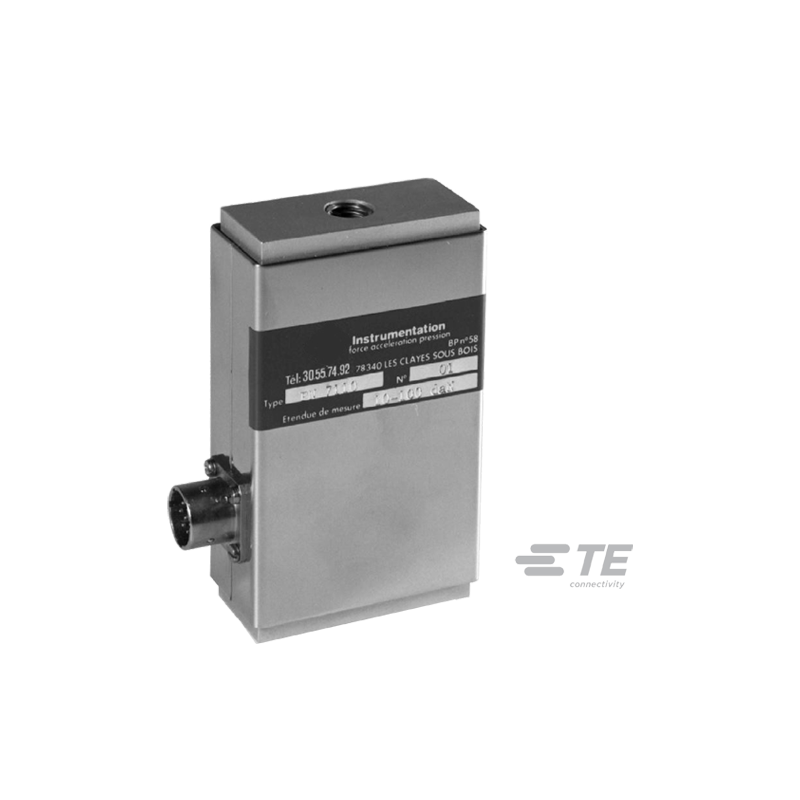

FN7110 S-beam Force Sensor
High accuracy measurement channels in two ranges in the same loadcell
Key features
- Double Full Scale Range
- Accuracy : 0.1% F.S. for each range
- Integrated Mechanical Stops
- Integrated Amplifier optional
Applications for FN7110 S-beam Force Sensor
- Process Control Equipment
- Robotics and Effectors
- Product Validation Testing
- Laboratory and Research
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Accuracy | 0.1% F.S. |
| Double fs range | 10N/100N, 50N/500N, 100N/1kN, 200N/2kN, 500N/5kN, 1kN/10kN |
| Load direction | Tension and compression |
| Material | Body: aluminum alloy or stainless steel depending on F.S. |
| Output signal | ±2 mV/V, ±2 V, ±5 V |
| Protection | IP50 |
