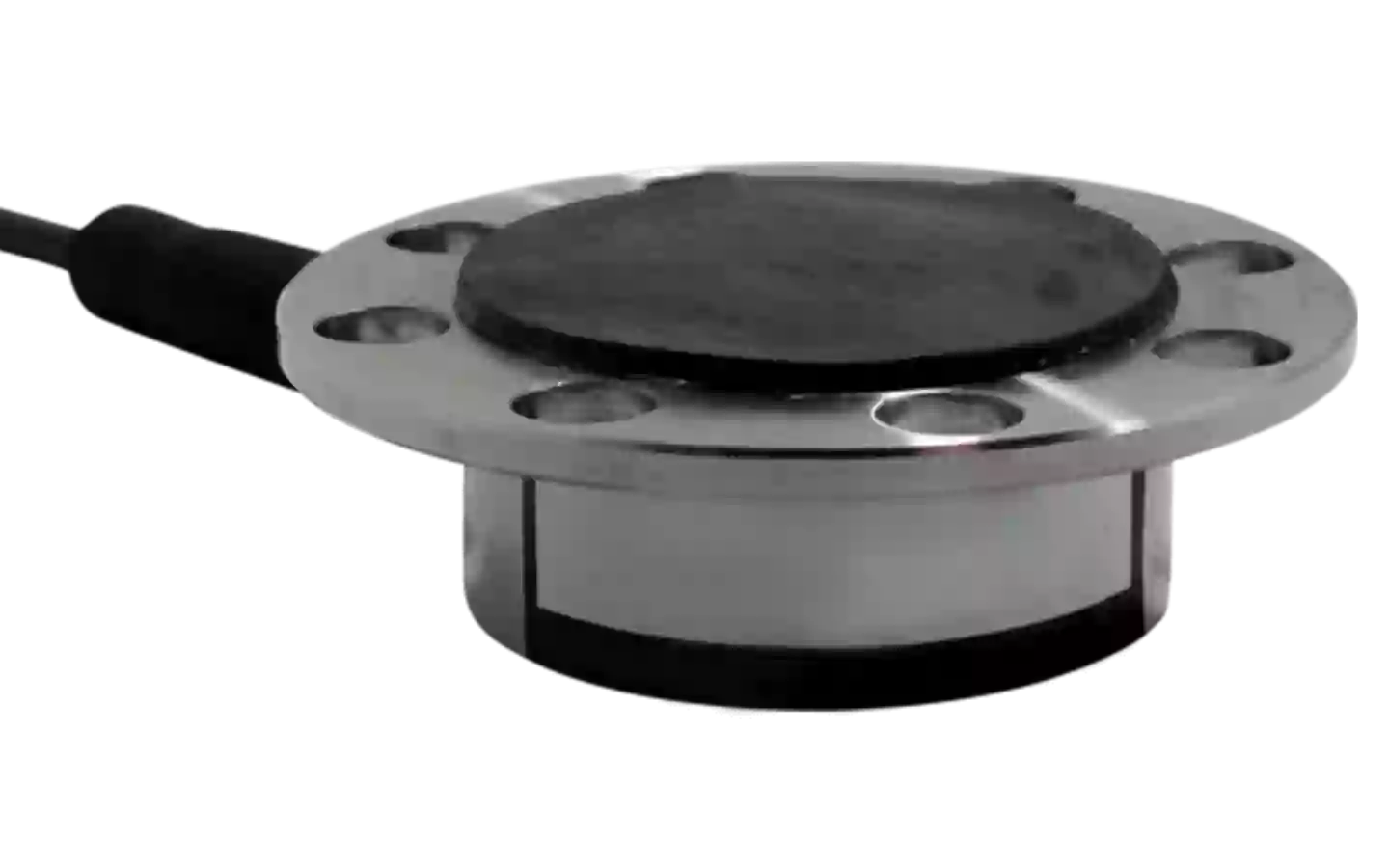

ALF304 Brake Pedal Force Sensor
Compact, low profile loadcell for measuring brake pedal application forces
Key features
- Off center loading compensation
- Simple cable tie or screw fixing
- Anti-slip rubber pad
- Removable loading plate
- Output rationalized to 2mV/V
About the ALF304 Brake Pedal Force Sensor
The ALF304 is a compact, low profile loadcell for measuring brake pedal application forces. The loadcell is robust in construction with a maximum force range of 2500N (250kgf). Its multi-hole fixing allows simple attachment to any shape pedal using screws or cable ties. The low profile stainless steel design maintains the brake pedals ergonomic geometry.
If you require other force ranges the ALF322 or ALF323 may be suitable.
We are happy to design variants of this loadcell to meet your specific requirements. Versions can be manufactured for higher temperature operation. Please consult our engineering department.
All standard ranges are manufactured in stainless steel.
Notes
1. AL = Applied load.
2. RL = Rated load.
3. Temperature coefficients apply over the compensated range.
Connections
The ALF304 is fitted with 2 metres of flexible polyurethane jacketed 4 core screened cable.
Excitation + = Red, Excitation - = Blue, Signal + = Yellow, Signal - = Green, Screen = Orange.
The screen is not connected to the loadcell body.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Bridge resistance | 700 Ω |
| Creep - 20 minutes | ±0.05% AL |
| Excitation voltage - maximum | 20V |
| Excitation voltage - recommended | 10V |
| Hysteresis | ±0.05% RL |
| Inclined load error - concentric at 3° | ±0.25% RL |
| Insulation resistance - minimum at 50vdc | 500MΩ |
| Load direction | Compression |
| Measurement range | 2,5kN |
| Non-linearity - terminal | ±0.05% RL |
| Overload - safe | 50% RL |
| Overload - ultimate | 200% RL |
| Rated output - rationalised | 2.0mV/V |
| Rationalisation tolerance | ±0.1% RL |
| Repeatability | ±0.02% RL |
| Sealing | IP65 |
| Sideload - safe | 100% RL |
| Structural stiffness | 3.9 x 10^7N/m |
| Temperature effect on rated output per °c | ±0.005% AL |
| Temperature effect on zero load output per °c | ±0.005% RL |
| Temperature range - compensated | -10 to +50°C |
| Temperature range - safe | -10 to +80°C |
| Weight - nominal (excluding cable) | 210g |
| Zero load output | ±4% RL |
