ALF321 Gear Shift Force Sensor
Measures gear lever forces required to achieve gear selection
Key features
- Gear lever actuation forces measured in 3 axes
- User friendly pure calibrated outputs for each axis
- Designed for hand or robotic actuation
- In car ergonomic replication
- Easily customized
About the ALF321 Gear Shift Force Sensor

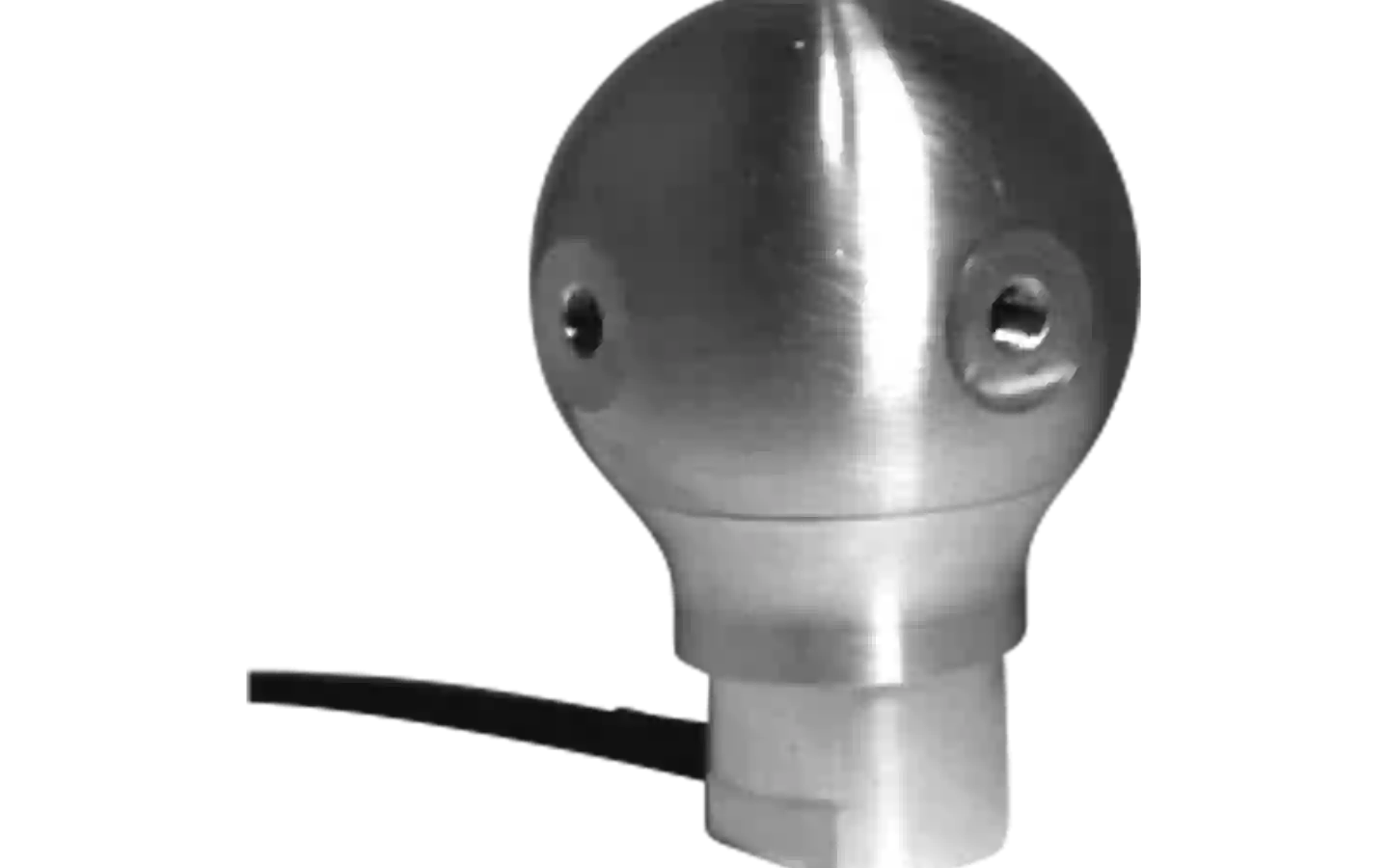

The ALF321 gear shift loadcell measures gear lever forces required to achieve gear selection. An ergonomically designed gear knob senses the force from a human hand or a mechanical actuator. The three axis force components are represented by three pure loadcell output signals. The gear shift loadcell is supplied calibrated and ready to use, no in-situ calibration or mathematical computation is required.
Easy fitment is achieved with mechanical axis referencing and simple attachment to a male thread or adapter.
The gear shift loadcell, like all our automotive products, can be produced for environmental test chamber temperature requirements of -40 to 80°C.
We are happy to design variants of this loadcell to meet your specific requirements.
The standard range is manufactured in aluminium.
Notes
1. AL = Applied load.
2. RL = Rated load.
3. Temperature coefficients apply over the compensated range.
4. Values apply to all axes unless otherwise specified.
Connections
The ALF321 is fitted with 2 metres of PVC insulated 12 core screened cable type 7-1-12C. The screen is not connected to the loadcell body.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Bridge resistance x & y axis | 350 Ω |
| Creep - 20 minutes | ±0.1% AL |
| Excitation voltage - maximum | 10V |
| Excitation voltage - recommended | 10V |
| Hysteresis | ±0.5% RL |
| Insulation resistance - minimum at 50vdc | 500 MΩ |
| Load direction | Bi-directional |
| Maximum cross talk | 3% RL |
| Measurement range | 200N |
| Non-linearity - terminal | ±0.5% RL |
| Overload - safe | 50% RL |
| Overload - ultimate | 100% RL |
| Rated output - nominal | 1.0mV/V |
| Repeatability | ±0.02% RL |
| Structural stiffness - nominal - x & y axis | 2.0 x 10^6 N/m |
| Temperature effect on rated output per °c | ±0.005% AL |
| Temperature effect on zero load output per °c | ±0.01% RL |
| Temperature range - compensated | -10 to +50°C |
| Temperature range - safe | -10 to +80°C |
| Weight - nominal (excluding cable) | 150g |
| Z axis | 1.3 x 10^6 N/m |
| Z axis | 700 Ω |
| Zero load output | ±4% RL |
