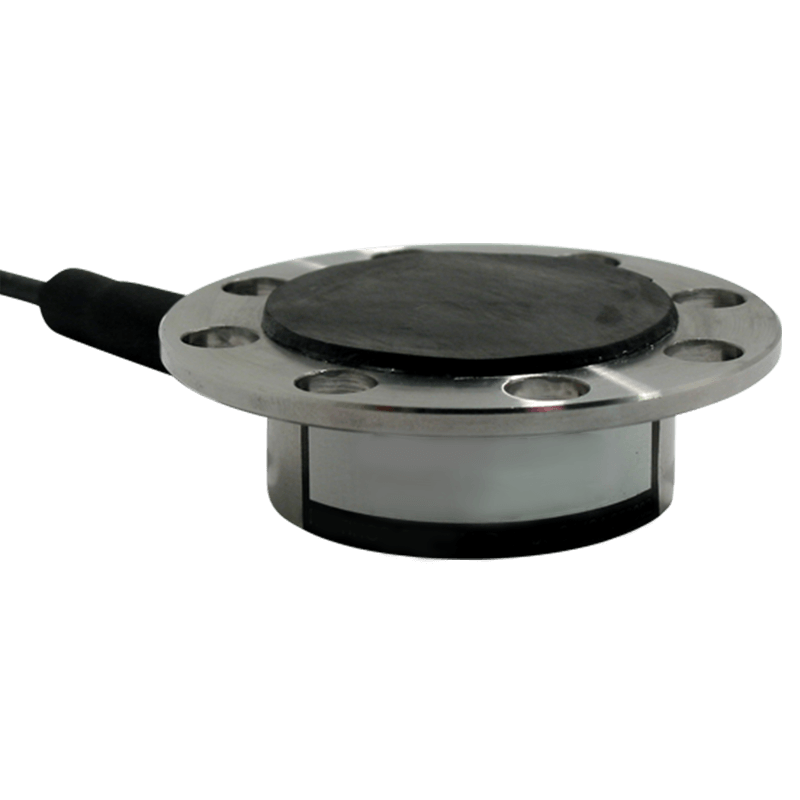

ALF322 Accelerator Pedal Force Sensor
Compact, low profile loadcell for measuring accelerator pedal application forces
Key features
- Off center loading compensation
- Simple cable tie or screw fixing
- Anti-slip rubber pad
- Removable loading plate
- Output rationalized to 1mV/V
- Lightweight aluminium alloy construction
About the ALF322 Accelerator Pedal Force Sensor
The ALF322 is a compact, low profile loadcell for measuring accelerator pedal application forces. The loadcell is robust in construction with a maximum force range of 250N (25kgf). Its multi-hole fixing allows simple attachment to any shape pedal using screws or cable ties. The low profile design maintains the accelerator pedals ergonomic geometry. Low mass aluminium alloy construction reduces the mass influence upon the accelerator pedal in dynamic testing.
If you require other force ranges the ALF304 or ALF323 may be suitable.
We are happy to design variants of this loadcell to meet your specific requirements.
The standard range is manufactured in aluminium alloy.
Notes
1. AL = Applied load.
2. RL = Rated load.
3. Temperature coefficients apply over the compensated range.
Connections
The ALF322 is fitted with 2 metres of flexible polyurethane jacketed 4 core screened cable.
Excitation + = Red, Excitation - = Blue, Signal + = Yellow, Signal - = Green, Screen = Orange.
The screen is not connected to the loadcell body.
When this loadcell is rationalised the resistors are housed in a capsule located in the loadcell cable 100mm from the free end. Capsule dimensions are Ø10mm by 57mm.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Bridge resistance | 700 Ω |
| Creep - 20 minutes | ±0.05% AL |
| Excitation voltage - maximum | 20V |
| Excitation voltage - recommended | 10V |
| Hysteresis | ±0.05% RL |
| Inclined load error - concentric at 3° | ±0.25% RL |
| Insulation resistance - minimum at 50vdc | 500 MΩ |
| Load direction | Compression |
| Measurement range | 250N |
| Non-linearity - terminal | ±0.05% RL |
| Overload - safe | 50% RL |
| Overload - ultimate | 200% RL |
| Rated output - rationalised | 1.0mV/V |
| Rationalisation tolerance | ±0.1% RL |
| Repeatability | ±0.02% RL |
| Sealing | IP65 |
| Sideload - safe | 100% RL |
| Structural stiffness | 8 x 10^6 N/m |
| Temperature effect on rated output per °c | ±0.005% AL |
| Temperature effect on zero load output per °c | ±0.01% RL |
| Temperature range - compensated | -10 to +50°C |
| Temperature range - safe | -10 to +80°C |
| Weight - nominal (excluding cable) | 80g |
| Zero load output | ±10% RL |
