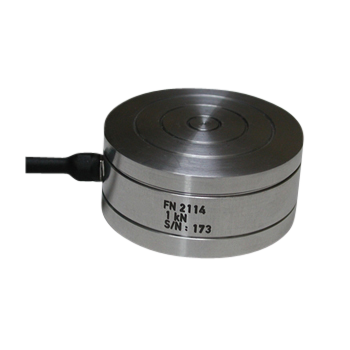

FN2114 Force Sensor for Automotive
Developed for pedal load testing
About the FN2114 force transducer for the automotive industry
The FN2114 force transducer is designed for pedal load testing. Due to its size, the sensor can be easily installed on the pedals of a vehicle or on a fatigue/ endurance test bench.
Since the forces to be examined on the brake, clutch or acceleration pedals are different, and vary from a small car to a heavy cargo vehicle, Althen offers different measurement ranges as standard.
With an internal mechanical decoupling system, the accuracy is 1% F.S., regardless of the point where the force is applied. Integrated amplifier for high level output is optionally available for all ranges.
Applications for FN2114
- On board vehicle equipment
- Test bench equipment
- Laboratory and research
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Accuracy | 1% regardless force application point |
| Force direction | Compression |
| Operating temperature | -20 – 80°C |
| Output | ±2 mV/V, ±2 V, ±5 V |
| Protection | IP50 |
| Range | 200N, 500N, 1kN, 2kN, 2.5kN (40 to 500 Lbf) |
