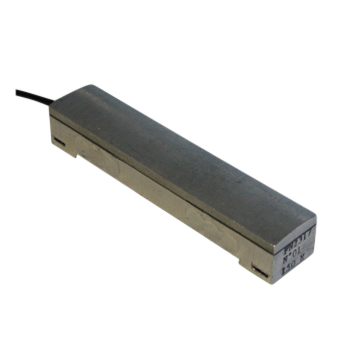

FN2317 Force Sensor for Automotive
Designed for quick and easy installation when measuring forces applied to the handle of the hand brake in automobiles
Key features
- Tension measurements
- High accuracy: ±0.5 % F.S.
- Compact, rugged and easy to mount design
- Optional high level output
About the FN2317 Force Sensor for Automotive
The FN2317 is designed with the express purpose of allowing quick and easy installation when measuring forces applied to the handle of the hand brake in automobiles. Through careful placement of metallic strain gauges inside the sensors, accurate measurements are obtained regardless of the point of application of force. Clamping collars facilitate the prompt and uncomplicated installation of the load cell under the hand brake. As such, the FN2317 is compatible with most models of hand brakes.
Althen has many years of experience as a designer and manufacturer of sensing solutions to the automotive industry and can supply standard or custom sensors for specific uses and testing environments.
Applications for FN2317
- On-board equipment testing
- Production quality control
- Laboratory and Research
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Accuracy | 0.5% F.S. |
| Full scale range | 500N, 1kN |
| Load direction | Compression |
| Operating temperature | -20 – 80°C |
| Output | 2mV/V |
| Protection | IP50 |
