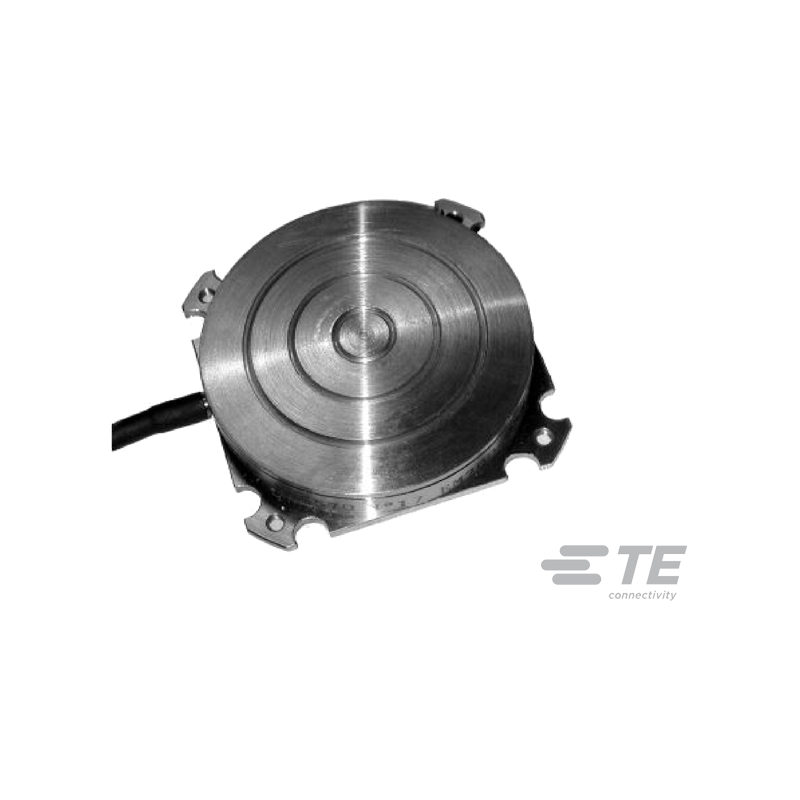

FN2570 Force Sensor for Automotive
Extra flat loadcell developed for pedal force testing
Key features
- Compression measurements
- Accuracy regardless of force application point
- Extra-flat and rugged design
- Easy installing
About the FN2570 Force Sensor for Automotive
The FN2570 load cell has been developed for pedal force testing. It attaches easily on all types of pedals and test rigs for endurance and fatigue tests, especially where size is an important factor. Strain is measured with high precision independent of the point of application of force. A strain relief spring strengthens the cable output.
Consult Althen for a custom solution to your application.
Applications for FN2570
- On-board vehicle equipment
- Test bench equipment
- Laboratory and Research
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Accuracy | 2.5% F.S. |
| Full scale range | 200N, 500N, 1kN, 1.5kN, 2kN, 2.5kN |
| Load direction | Compression |
| Operating temperature | -20 – 80°C |
| Output | 2mV/V |
| Protection | IP50 |
