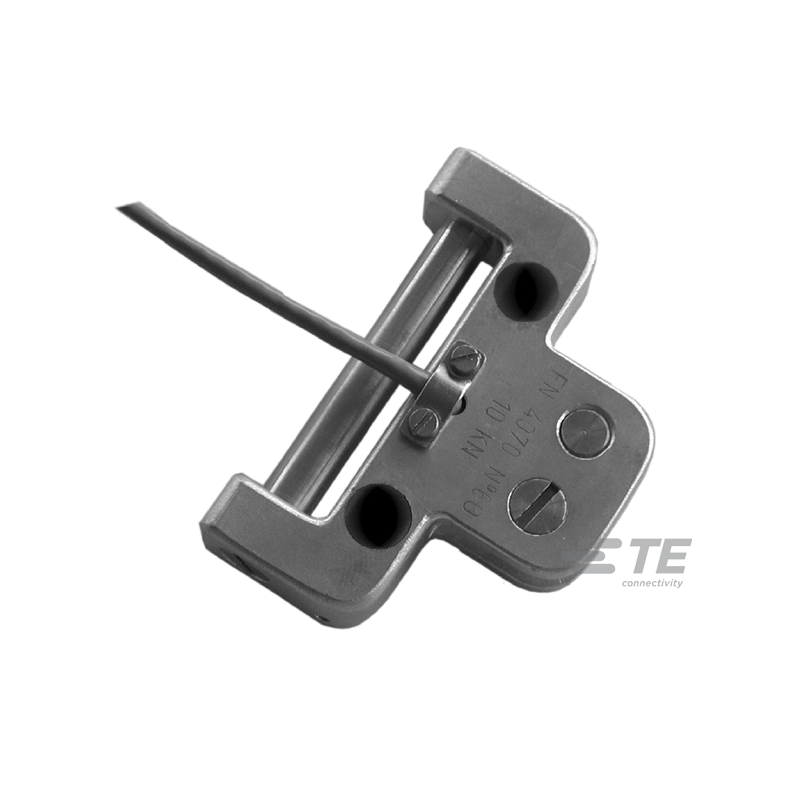

FN4070 Force Sensor for Automotive
Measures the effort generated on the anchor point of seat belts during crash tests
Key features
- Multiple tongues adjustable by customer
- Dynamic application
- Very robust for crash
- Easy cable replacement for customer
About the FN4070 Force Sensor for Automotive
The FN4070 load cell measures the effort generated on the anchor point of seat-belts during crash-tests. It has been specifically designed with a replaceable tongue, so that the load cell can be re-used by simply changing the tongue. It also has a cable output which can be renewed by the crash test technicians to allow for cost-effective, in-house maintenance of the device. For lower operating ranges refer to model FN4080.
To meet your needs we also offer complete turnkey systems. The matched components (sensor, power, amplifier and digital display) are formatted, calibrated and ready for immediate use.
Applications for FN4070
- Crash test on-board equipment
- Comfort on-board
- Parachute and security absorber
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Accuracy | 0.5% FS |
| Full scale range | 250N - 50kN |
| Load direction | Tension |
| Operating temperature | -20 – 80°C |
| Output | ±1.5 mV/V |
| Protection | IP50 |
