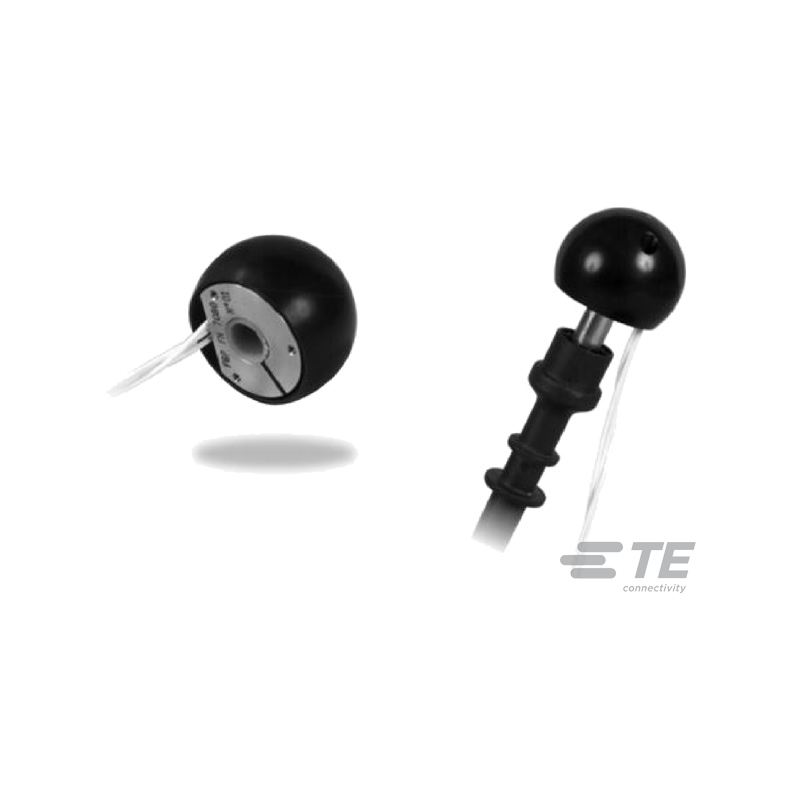

FN7080 Force Sensor for Automotive
Is installed in place of the original gear knob on the gear stick and measures the force required to change gear
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Accuracy | 0.3% F.S. |
| Full scale range | 200N, 300N, 500N |
| Load direction | Compression, tension |
| Operating temperature | -20 – 80°C |
| Output | ±1.5 mV/V, ±2 V, ±5 V |
| Protection | IP50 |
