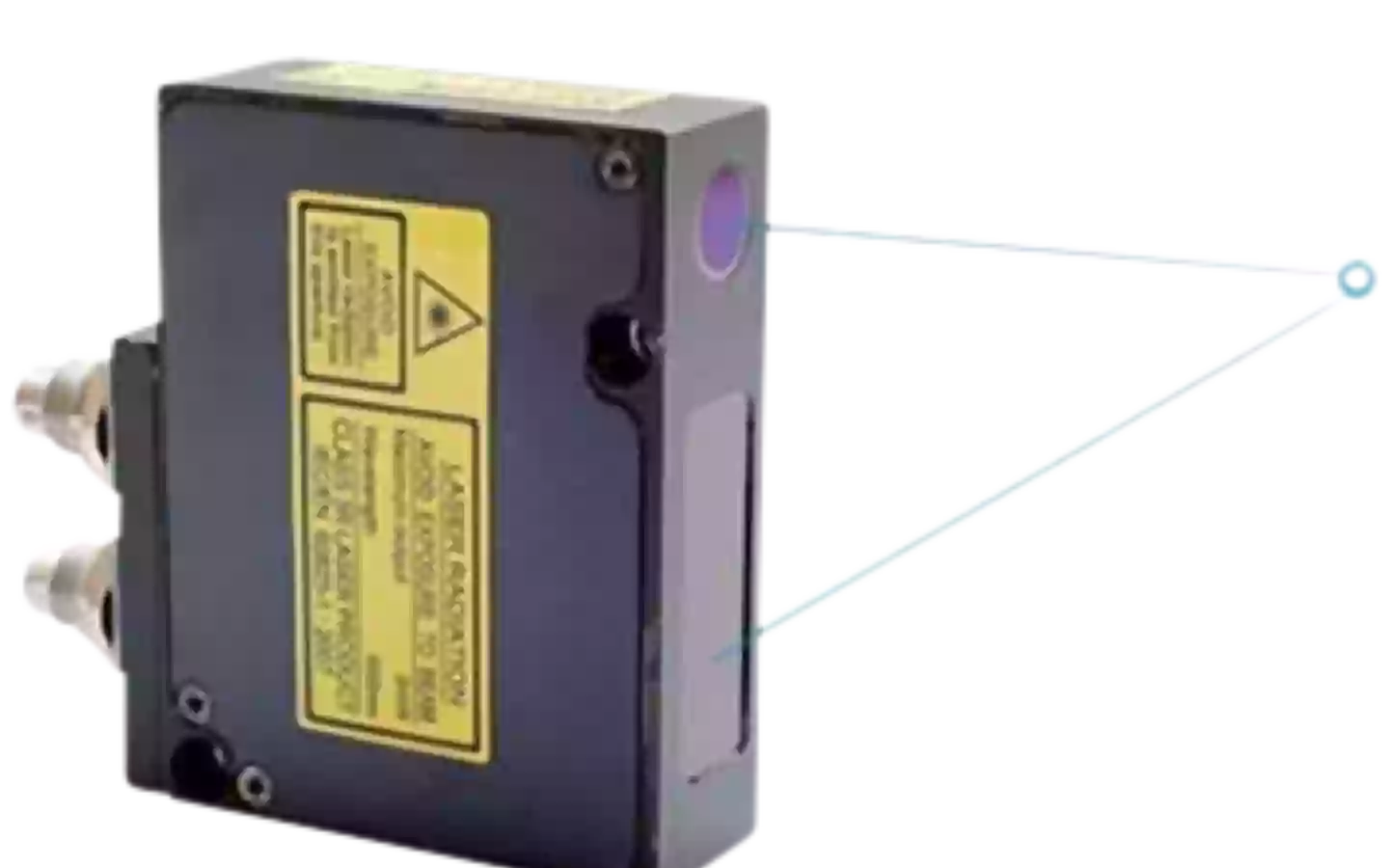

FDRF603 Series Laser Triangulation Sensor

Universal single point laser sensor with  2 to 1.250 mm operating ranges


Key features

  • Measurement ranges: 2, 4, 5, 10, 15, 25, 30, 50, 100, 250, 500, 750, 1.000 or 1.250 mm
  • Red or blue laser diodes wavelengths
  • Binocular sensors for laser scanning
  • Safe distance to target
  • Non-contact measurement
  • Non-wear, Non-force
  • Fast, non-mass laser spot

About FDRF603 Series Laser Displacement Sensors

Laser displacement sensors are used for non-contact measurement of displacement, speed, acceleration, vibrations, deformation and profiles in static and dynamic applications in the research and industry to improve quality and save costs.

The measurement ranges vary from 2 mm up to 1.250 mm. Due to the non contact measurement you can avoid force on the target and wear of both target and sensor surfaces. Due to the fact that the laser spot does not have mass, it follows the target at the same speed.

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Base distance x 15 - 260 mm
Housing material Aluminium
Lightsource Red (660nm) or Blue (405nm)
Linearity ±0.05% or ±0.1%
Max. measurement frequency 9400 Hz
Output interface RS232, RS485, CAN, Ethernet, 4-20mA, 0-10V
Range 2, 4, 5, 10, 15, 25, 30, 50, 100, 250, 500, 750, 1000, 1250mm
Resolution 0.01% of the range (digital output) or 0.02%
Size 65x50x20 mm
Temperature drift 0,02% of the range/°С
Weight 100 gram
