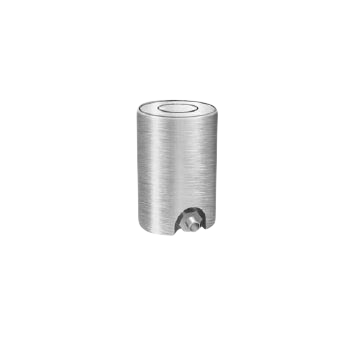

CTR PROBES Capacitive Position Sensor
An SMA connector is built in to the probe. The cable is connected to the capacitive sensor with a connector and it exits the probe radially
Sample Applications for CTR probes
- Microscope focus
- Lens alignment
- Part profiling
- Part tilt
- Semiconductor wafer thickness
- Piezo stage displacement
- Vibration measurement
- Computer disk run out and thickness
- Brake rotor warp and thickness
- Sheet metal thickness
- Photovoltaic wafers
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Accuracy | 0.05% FS |
| Cable length | 2.44 m to 15.2 m |
| Measurement range | 0.025 to 2.54mm |
| Pressure rating | Standard 200 psig |
