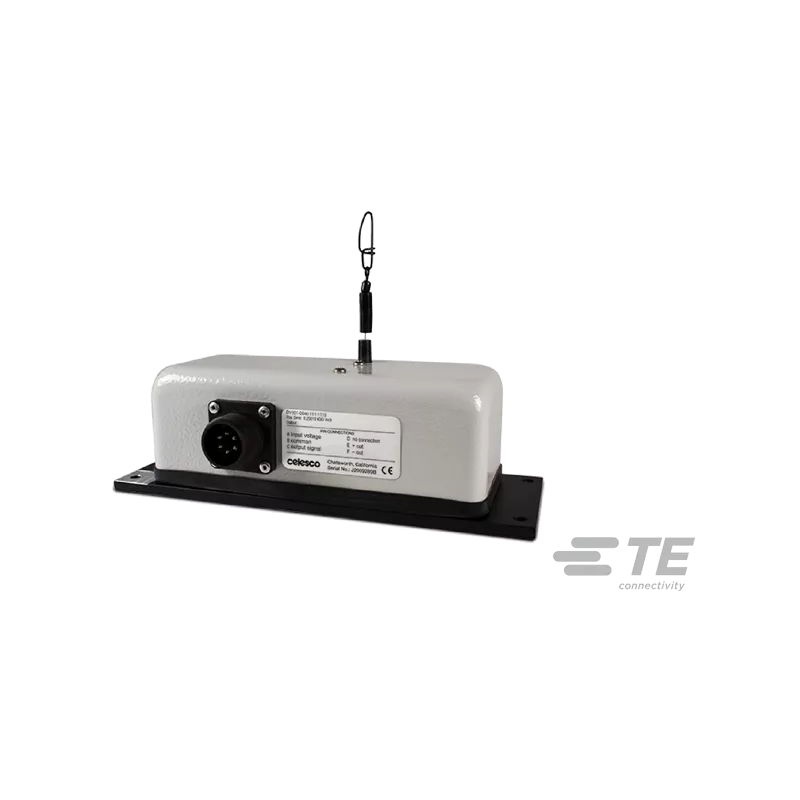

DV301 Draw-Wire Sensors (String Pot)
Classic string pot design, velocity (tachometer ) + position (Potentiometer)
Key features
- Position and velocity output signals
- 0-2 to 0-100 inch stroke range options
- Powder painted & anodized aluminum enclosure
About the DV301 Draw-Wire Sensor | String Pot
The DV301 is a combination position and velocity transducer for full-scale measurement ranges from 2 to 100 inches.
The DV301 string pot provides linearity better than ±0.10% of output at any velocity. A precision plastic-hybrid potentiometer provides accurate position feedback while a self-generating DC tachometer provides a velocity signal that is proportional to the speed of the traveling stainless-steel measuring cable.
Applications for DV301
- Industrial automation & testing applications
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Accuracy | .1% of FS |
| Housing material | Aluminum |
| Ip rating | IP50 |
| Measuring cable | Nylon-coated stainless steel |
| Operating temperature | -40°C to 93°C |
| Range (mm) | 50.8-2540mm (2-100 in.) |
| Repeatability | .02% of FS |
