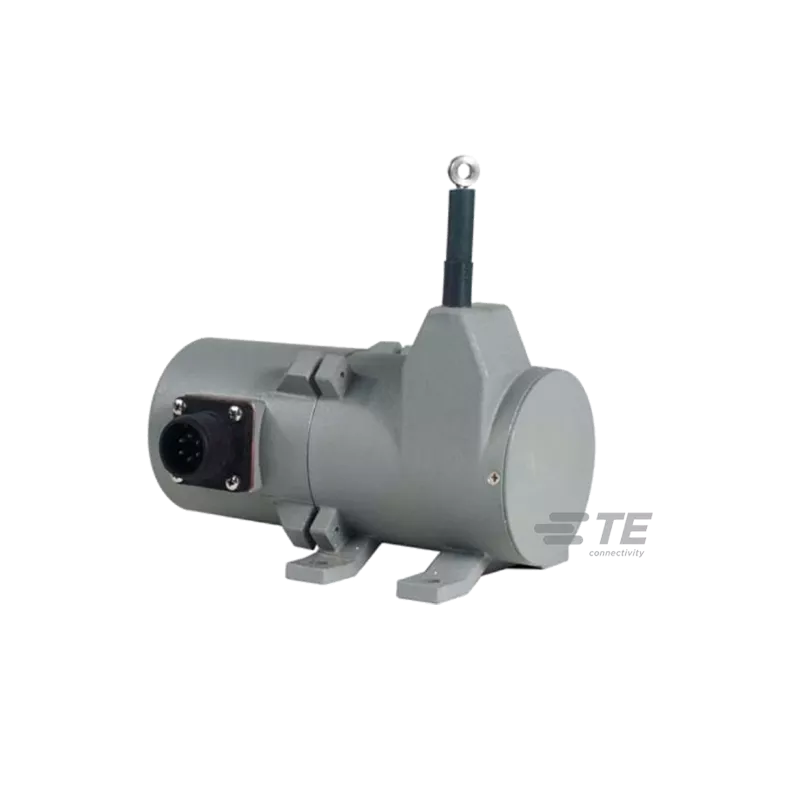

PT8 Series Draw-Wire Sensors (String Pot)

Heavy duty and submersible string potentiometers designed for extreme industrial and marine environments


Key features

  • Heavy duty, submersible
  • High accuracy, high acceleration
  • CSA, CENELEC certification for hazardous area applications
  • Designed for extreme industrial and marine environments

The PT8 series cable extension transducer is part of the industrial cable-extension transducers range. This draw-wire sensor series is perfect for demanding applications such as metal forming, wet-end paper processing and injection molding. Hazardous area certification is available. Installs in minutes, fits into areas which are unsuitable for rod-type measuring devices. Works without perfectly parallel alignment. Measurement ranges up to 60 inches. Environmental suitability: NEMA 6, IP68

Options

  • Voltage divider (potentiometric)
  • 0-10VDC, 0-5VDC
  • 4-20mA feedback signal
  • Incremental/absolute encoder
  • CANbus communication
  • DeviceNET communication
  • RS232 serial communication
  • Free-release proof with VLS (Velocity Limiting System) option
  • M12 and DEUTSCH connector options

Applications for PT8

  • Steel mills, lumber and paper mills
  • Factory automation
  • Die-casting
  • Injection molding
  • Mobile construction
  • Mining

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Accuracy ±0.04% to ±0.25%
Dimensions (mm) 90 x 140 x 135
Housing material Aluminum, stainless steel
Ip rating IP67, IP68
Measuring cable All plastic, bare stainless steel, nylon-coated stainless steel
Operating temperature -40°C to 90°C
Range 0 - 1524mm
