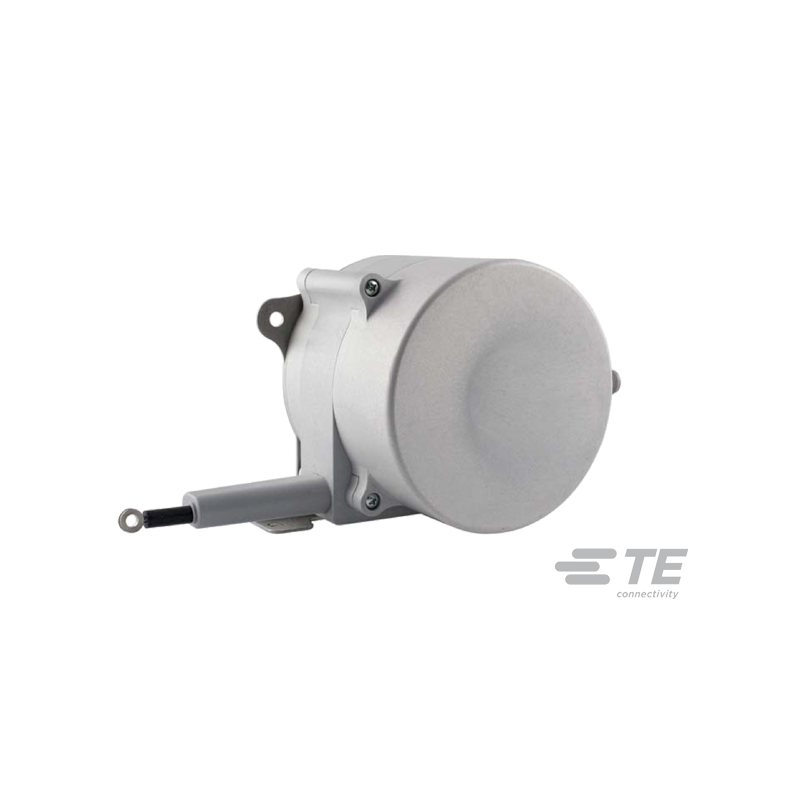

SR Series Draw-Wire Sensors (String Pot)
Rugged, low-cost, high performance string potentiometers for wet environments and outdoor applications
Key features
- Low cost, high value stringpot
- Versatile stainless steel mounting bracket
- Simple one-button user scalable stroke range
- Custom configurations available for OEM customers
Applications for SR Series Draw-Wire Sensors
- Outdoor mobile construction equipment
- Outrigger positioning
- Hydraulic lifts
- Water and power controls
Options
- Voltage divider (potentiometric)
- 0-10VDC
- 4-20mA feedback signal
- Incremental encoder
- CANbus communication (CANopen/CAN J1939)
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Accuracy | ±0.35% to ±0.5% |
| Dimensions (mm) | 100 x 120 x 200 |
| Housing material | Polycarbonate with stainless steel bracket |
| Ip rating | IP67 |
| Measuring cable | Bare stainless steel, nylon-coated stainless steel |
| Operating temperature | -40°C to 85°C |
| Range | 0 - 175 inches |
