OEP-AC Fiber Optic Extensometer

Extensometer sensor with anchors (Concrete)


About the OEP-AC Fiber Optic Extensometer

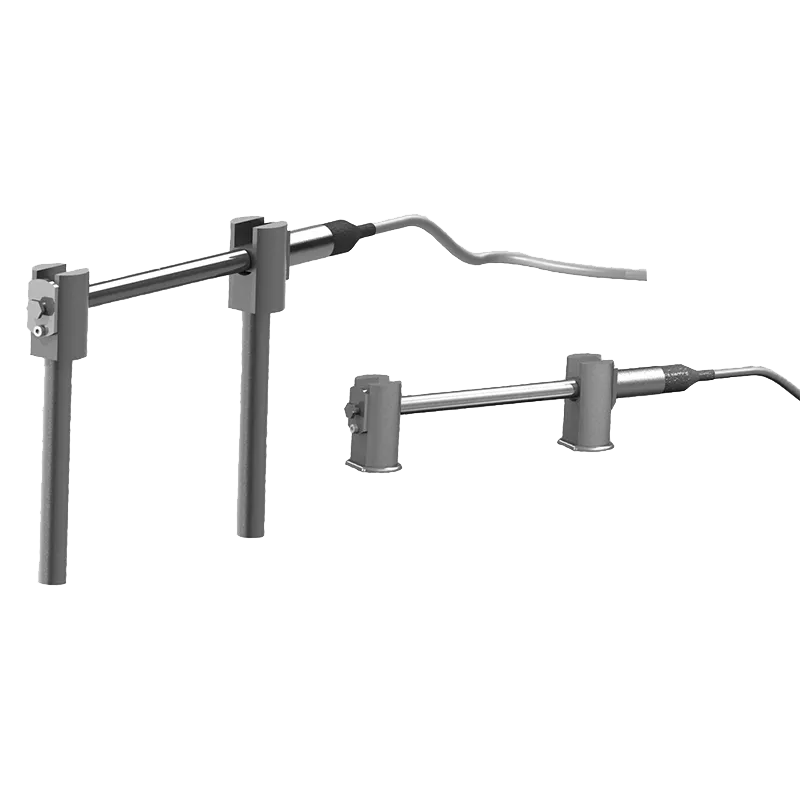

The Fiber optic extensometer sensors OEP-AC (for concrete) and OEP-SW (for steel) with anchors are developed for the monitoring of steel & concrete structures. These sensors can be used to monitor single crack as well as multiple concrete fissures. Applications like this require a robust and reliable sensor and that is exactly what these extensometer sensors are!

Both of the sensors have the well-known Fiber Optic characteristics. (Intrinsically safe, oustanding repeatability, long term monitoring and maintenaince free without drifting over time.)

Features OEP-AC

  • Maintenance free without drifting over time
  • Outstanding repeatability
  • No temperature compensation required
  • Insensitive to transverse strains
  • Intrinsically safe
  • Easy to set-up and operate
  • No lag - no latency

Applications for OEP-AC

  • Civil engineering and geotechnical applications
  • Marine and subsea conditions
  • High voltage environments
  • High temperature applications
  • Nuclear and hazardous environments
  • ATEX environment and zone exposed to explosive atmosphere

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Cable length Up to 3km
Dimensions 10mm x 0,230 mm O.D.
Measurement range ±1000µε, ±2500µε
Optical connector SCA (standard), SC (standard), other connector available on request
Precision A: +/- 3% F.S., B: +/- 3% F.S., C: +/- 10% F.S.
Resolution 0,15 µe
Response time Readout unit dependent
Signal conditioner compatibility All WLPI signal conditioners
