ODP Fiber Optic Position Sensors
Designed to offer high precision in the most demanding environments
About the ODP Fiber Optic Position Sensors
Multi-Purpose Fiber Optic Linear Position Sensor. Compatible with all of our WLPI Series of signal conditioners.

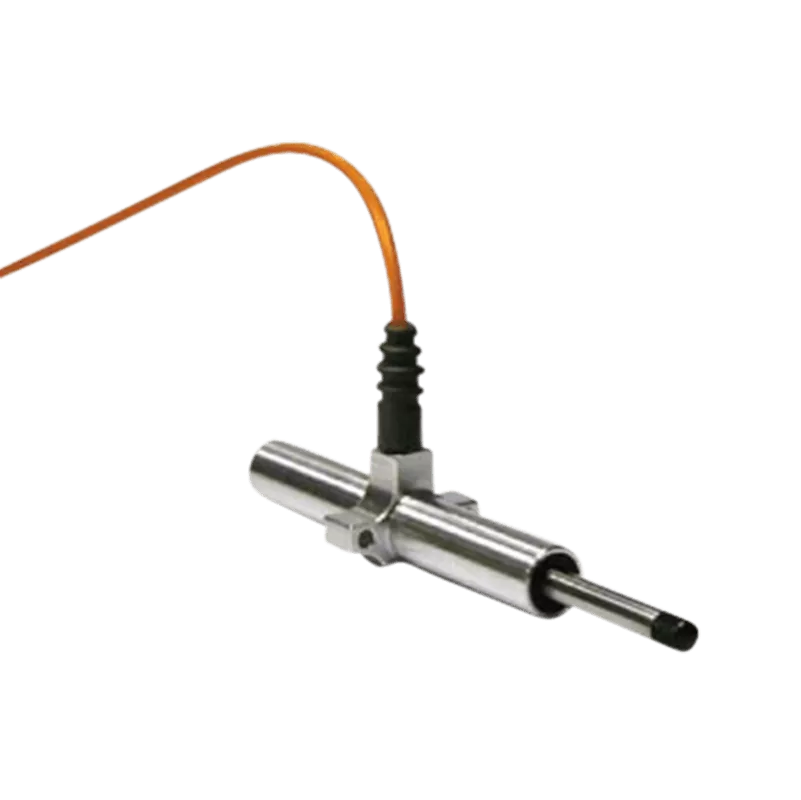

The standard model comes with 25 mm linear stroke length and with one micron resolution. Other stroke lengths are available upon request. This sensor is mounted in a water splash-proof aluminium housing and a dielectric composite housing is offered in option. A convenient wall-mount attachment and a shaft spring return allow easy installation of the sensor.
This precise and robust sensor is available with different optical cables lengths. Fully customizable according to your specific application.
Features ODP
- 25 and 10 mm linear stroke length standard
- Outstanding resolution
- Robust construction and water splash proof housing
- EMI/RFI, lightning and microwave immune
- Intrinsically safe
- Convenient wall mount attachment
- OEM-type and custom version
Applications for ODP
- EM, RF and microwave environments
- High voltage environments
- Nuclear and hazardous environments
- Automotive, robotic systems
- Aeronautic & aerospace applications
- Civil engineering and geotechnical applications
- Material science
- RF and microwave drying applications
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
Specification | Value |
---|---|
Dimensions | 11,1 mm |
Measurement range | 0 - 25 mm |
Operating temperature | -40°C to +85°C |
Precision | ± 0,2% F.S. (@ 25°C) |
Repeatability | 0,05% F.S. |
Resolution | 25 microns |
Response time | Readout unit dependent |
