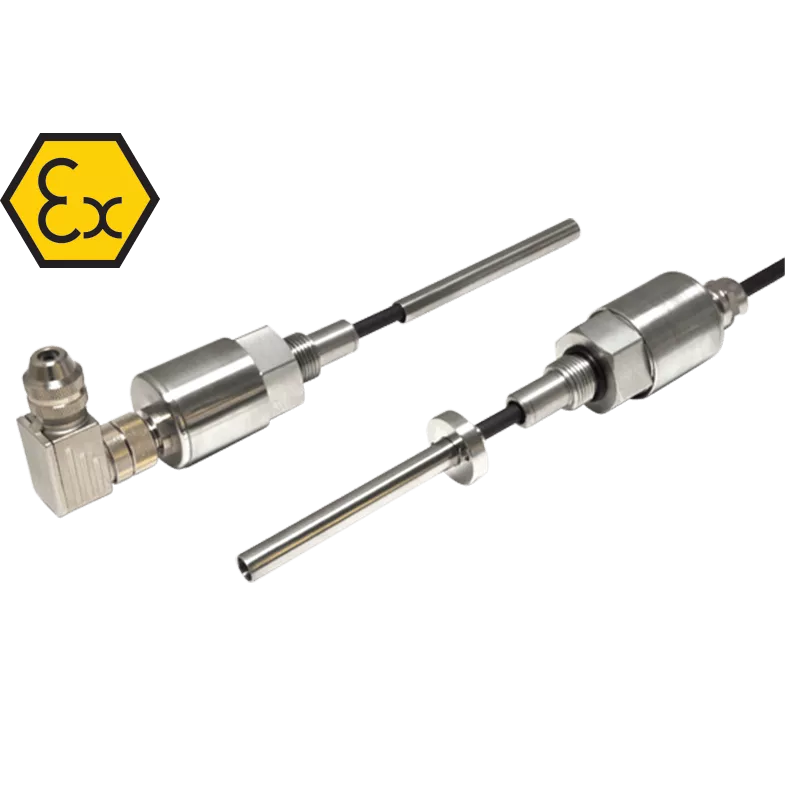

E100 Linear Inductive Position Sensor
For use in potentially explosive gas/vapour and dust atmospheres
Key features
- Sealing to IP67
- Intrinsically safe for Gas to: Ex II 1G
- Compact 19 mm diameter body
- Travel set to customer’s requirement
- High accuracy and stability
- Non-contacting inductive technology to eliminate wear
About the E100 Linear Inductive Position Sensor
The E100 is designed for demanding hydraulic or pneumatic cylinder position feedback applications where service life, environmental resistance and cost are important and is ideal for OEMs seeking good sensor performance for arduous applications in hazardous areas.
Overall performance, repeatability and stability are outstanding over a wide temperature range. The unit is highly compact and space-efficient, being responsive along almost its entire length.
The sensor is easy to install in cylinders and has a range of mechanical options
It provides a linear output proportional to displacement. Each unit is supplied with the output calibrated to the travel required by the customer, from 0-5mm to 0-800mm and with full EMC protection built in.
As a leading supplier of linear, rotary, tilt and intrinsically safe position sensors, Althen has the expertise to supply a sensor to suit a wide variety of applications.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Body diameter | 35mm |
| Frequency response | >10KHz (-3dB) |
| Independent linearity | ±0.1% to ±0.5% |
| Measurement range | Up to 800mm |
| Output signal | 0.5-4.5VDC |
| Sealing | IP67 |
