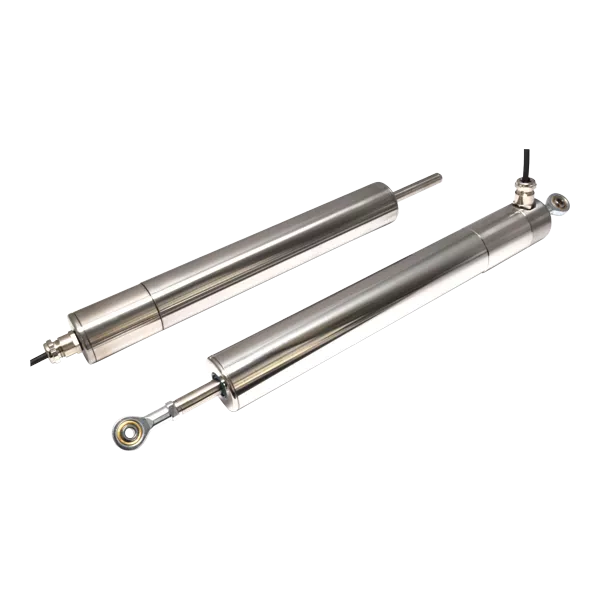

S114 (Submersible) Linear Inductive Position Sensor
Sealed to IP68 10bar, 100msw, 145psi
Key features
- Compact and self-contained
- Travel set to customer's requirement
- High durability and reliability
- High accuracy and stability
- Sealing to IP68 - 10 Bar
- Non-contacting inductive technology to eliminate wear
About the S114 (Submersible) Linear Inductive Position Sensor
The S114 is an affordable, durable, high-accuracy position sensor. Derived from the FDP101, it is designed for applications where the sensor would be completely submerged during normal operation, it retains desirable features such as compact size, good sensor performance yet capable of working at pressure.
Overall performance, repeatability and stability are outstanding over a wide temperature range. It provides a linear output proportional to displacement. Each unit is supplied with the output calibrated to the travel required by the customer, from 0-5mm to 0-800mm and with full EMC protection built in.
The sensor is very robust, the body and push rod being made of stainless steel for long service life and environmental resistance. The sensor is easy to install with mounting options including M5 stainless steel rod eye bearings and body clamps. The push rod can be supplied free or captive, with female M5 thread, an M5 rod eye, or dome end. Captive push rods can be sprung loaded, in either direction. Environmental sealing is to IP68 10 Bar.
As a leading supplier of linear, rotary, tilt and intrinsically safe position sensors, Althen has the expertise to supply a sensor to suit a wide variety of applications.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
Specification | Value |
---|---|
Frequency response | 300Hz (-3dB) |
Independent linearity | ±0.25% to ±0.5% |
Measurement range | Up to 800mm |
Sealing | IP68 10bar, 100msw, 145psi |
