S115 (Submersible) Linear Inductive Position Sensor

LIPS S115 Rugged submersible stand-alone linear inductive position sensor


Key features

  • Compact and self-contained
  • Travel set to customer's requirement
  • High durability and reliability
  • High accuracy and stability
  • Sealing to IP68 - 10 Bar
  • Non-contacting inductive technology to eliminate wear

About the S115 (Submersible) Linear Inductive Position Sensor

The S115 is a heavy-duty version of the S114 sensor with a stronger 12.6mm push rod, recommended for applications where vibration is an issue or there is a need for longer travel sensors which are to be mounted horizontally between rod eyes. It remains an affordable, durable, highaccuracy position sensor designed for applications where the sensor would be completely submerged during normal operation.

Overall performance, repeatability and stability are outstanding over a wide temperature range. It provides a linear output proportional to displacement. Each unit is supplied with the output calibrated to the travel required by the customer, from 0-5mm to 0-800mm and with full EMC protection built in.

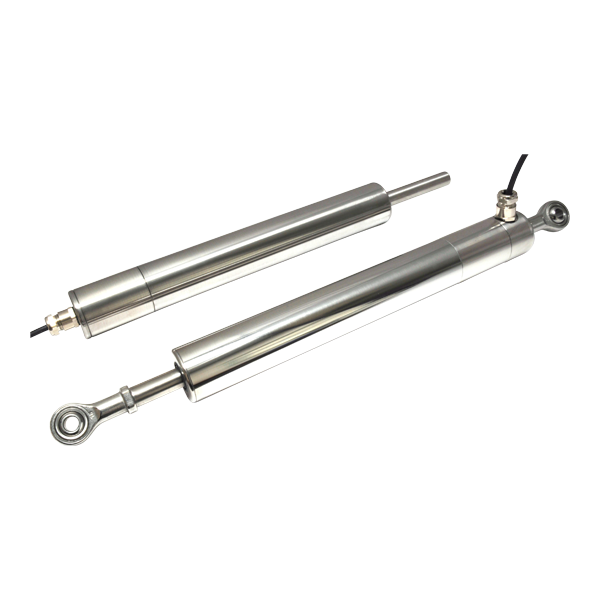

The sensor is very robust, the body and push rod being made of 316 stainless steel for long service life and environmental resistance. The sensor is easy to install with mounting options including stainless steel M8 rod eye bearings and body clamps. The push rod can be supplied free or captive, with female M8 thread, an M8 rod eye, or dome end. Captive push rods can be sprung loaded, in either direction. Environmental sealing is to IP68 10 Bar.

As a leading supplier of linear, rotary, tilt and intrinsically safe position sensors, Althen has the expertise to supply a sensor to suit a wide variety of applications.

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Frequency response 10KHz or 300Hz
Independent linearity ±0.25% to ±0.5%
Measurement range Up to 800mm
Sealing IP68 10bar, 100msw, 145psi
