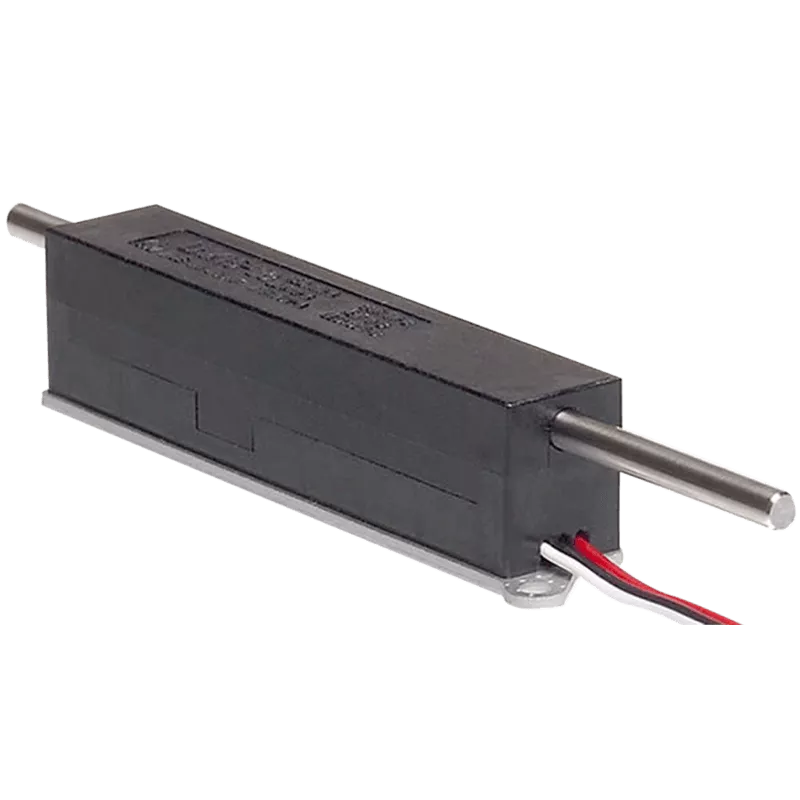

LHK15-30 Linear Magnetic Hall Sensor

Special specifications such as with spring return device are available


Key features

  • Hall effect IC
  • With front and rear extended
  • Operating temperature range: -40°C +105°C
  • Drift at center position < ±0.5% Vout-FS
  • Best suitable for applications to detect the position of linear-motion displacement

About the LHK15-30 Linear Magnetic Hall Sensor

The LHK15-30 is a long-life, linear motion contactless potentiometer with stroke 30mm. Dual output and dual independent output are available.

Special specifications available

  • With spring return device
  • Special machining on the shaft
  • Special output (cross, parallel, dual independent output)
  • PWM output
  • Low current consumption in slow mode

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Dual output/Dual independent output: Max. 30mA
Applied voltage 5 VDC±10%
Current consumption Single output: Max. 15mA
Drift at center position Below ±0.5% Vout-FS
Effective output 10%±3%~90%±3%Vin
Electrical stroke Approx. 30mm±0.5mm
Friction Within 0.6N (60gf)
Independent linearity tolerance ±0.5% - FS
Load resistance 10kΩ min.
Mass Approx. 44g
Mechanical stroke Approx. 34mm
Operating temperature range -40°C +105°C
Output temperature characteristic Below ±0.8% Vout -FS
Stopper strength Approx. 20N (2kgf)
Storage temperature range -40°C +105°C
