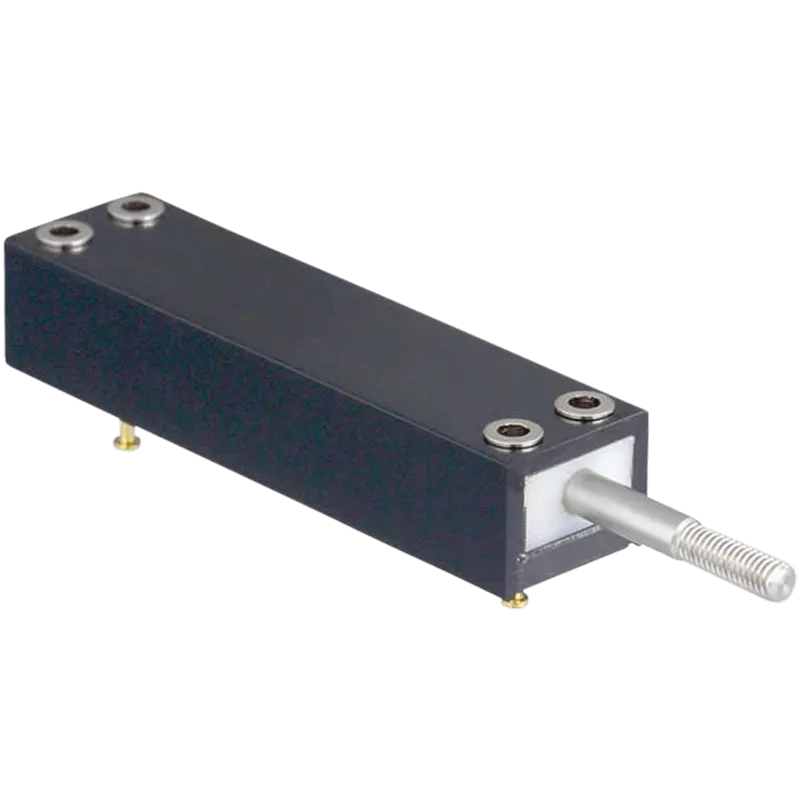

13FLP Series Linear Potentiometer
Conductive Plastic Model with front and rear extended shaft
Key features
- Miniature conductive plastic model
- Measurement range: between 12mm and 100mm
- Resistance value: between 500Ω to 20kΩ
- Linearity tolerance: ±2%, ±1.5%, ±1%, ±0.7%, ±0.5% or ±0.3%
- Various body dimensions available
About the 13FLP Series Linear Potentiometer
The 13FLP is a low-cost item with side turret terminals and a thread at the end of the shaft.
In the 13FLP series we have the 13FLP12A, 13FLP25A, 13FLP50A and 13FLP100A available.
Body dimensions (mm): 11x13x(depends on the type of linear potentiometer):
- 13FLP12A: stroke 12 mm
- 13FLP25A: stroke 25 mm
- 13FLP50A: stroke 50 mm
- 13FLP100A: stroke 100 mm
Special Specifications Available
Spring return device mounted on the shaft (friction is referred as within table), special machining on the shaft, wirewound resistive element type (13LP series). In case of 13FLP series with spring return device, please note the following: The spring return device is mounted on the outside shaft, of which dimensions are as the table.
For more specifications please contact us.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Precision class: ±1.0%, ±0.7%, ±0.5%, ±0.3% | |
| Contact resistance variation | Within 2% C.R.V. |
| Dielectric strength | 1 minute at 500V.A.C. |
| Electrical stroke | 12.7±0.5mm, 25.4±0.5mm, 50.8±0.5mm, 101.6±0.5mm |
| Friction | Within 0.5N(50gf), Within 1.0N (100gf) |
| Independent linearity tolerance | Standard class: ±2.0%, ±1.5%, ±1.0%, ±0.7% |
| Insulation resistance | Over 1.000MΩ at 500VDC |
| Mass | Approx. 10g, approx. 15g, approx. 25g, approx. 35g |
| Output smoothness | Within 0.1% against input voltage |
| Power rating | 0.2W, 0.4W, 0.7W, 1.2W |
| Resolution | Essentially infinite |
| Standard resistance values | 500Ω, 1k, 2kΩ, 5kΩ, 10kΩ, 20kΩ |
| Stopper strength | ±400p.p.m./°C |
| Total resistance tolerance | ±20% |
