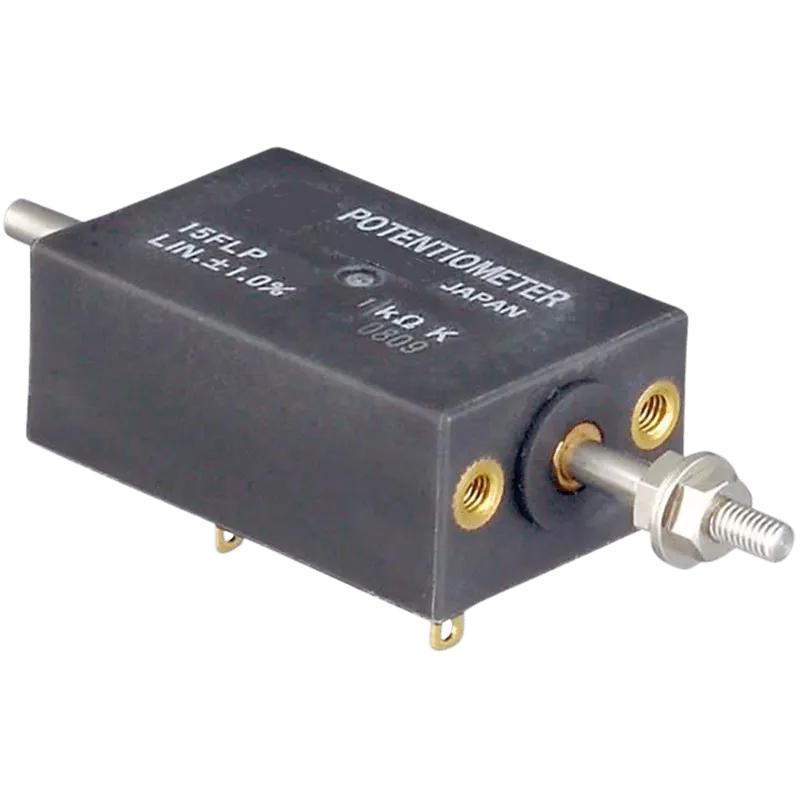

15FLP Series Linear Potentiometer
Conductive Plastic Model with front and rear extended shaft
Key features
- Measurement range: between 15 mm and 30 mm
- Resistance value: between 500 Ω to 10 kΩ
- Linearity tolerance: ±2%, ±1% or ±0.5%
- Body dimensions (mm): 15x24x(depends on the type of linear potentiometer)
About the 15FLP Series Linear Potentiometer
The 15FLP is a low-cost item with a thread at the end of shaft and short stroke from 10mm to 30mm.
In the Linear potentiometer 15FLPA series we have the following types available:, 15FLP10A, 15FLP15A, 15FLP20A and 15FLP30A.
For type specific details, please contact us.
Special Specifications Available
Spring return device incorporated (friction is approx. 3N [300gf], special machining on the shaft.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Precision class: ±1.0%, ±0.5% | |
| Contact resistance variation | Within 2% C.R.V. |
| Dielectric strength | 1 minute at 1.000V.A.C. |
| Friction | Within 0.3N(30gf) |
| Independent linearity tolerance | Standard class: ±2.0%, ±1.0% |
| Insulation resistance | Over 1.000MΩ at 500VDC |
| Mass | Approx. 30g |
| Output smoothness | Within 0.1% against input voltage |
| Power rating | 0.2W, 0.3W, 0.4W, 0.5W |
| Resistance temperature coefficient | ±400p.p.m./°C |
| Resolution | Essentially infinite |
| Standard resistance values | 500Ω, 1kΩ, 2kΩ, 5kΩ, 10kΩ |
| Stopper strength | Approx. 20N (2kgf) |
| Stroke | 10mm, 15mm, 20mm, 30mm |
| Total resistance tolerance | ±10% |
