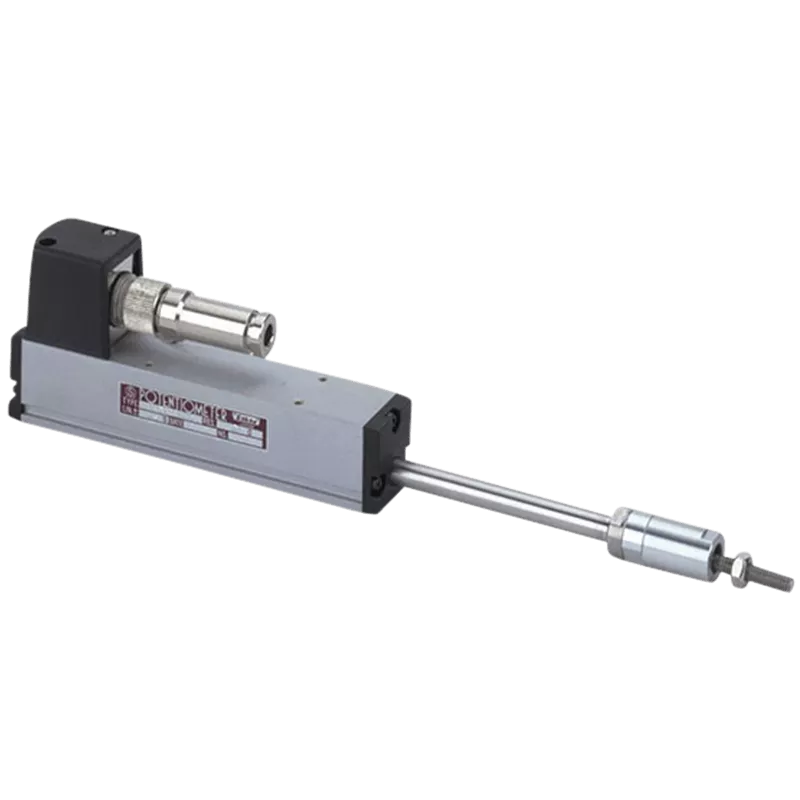

18FLPB Series Linear Potentiometer
Conductive Plastic Model, shaft with a cardan joint and fixing nail mounting to the body
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| precision | Precision class: ±0.2%, ±0.1%, ±0.05% |
| Contact resistance variation | Within 2% C.R.V. |
| Dielectric strength | 1 minute at 500V.A.C. |
| Friction | Within 1.2N (120gf) |
| Independent linearity toerance | Standard class: ±0.5% |
| Insulation resistance | Over 1.000MΩ at 500VDC |
| Mass | Approx. 90g, approx. 120g, approx. 140g, approx. 160g, approx. 250g |
| Output smoothness | Within 0.1% against input voltage |
| Power rating | 0.5W, 0.75W, 1.0W, 1.25W, 1.5W |
| Resistance temperature coefficient | ±400p.p.m./°C |
| Resolution | oneindig |
| Standard resistance values | 500Ω, 1kΩ, 2kΩ, 5kΩ, 10kΩ, 20kΩ |
| Stopper strength | Approx. 90N (9kgf) |
| Stroke | 25mm, 50mm ,75mm, 100mm, 150mm |
| Total resistance tolerance | ±10% |
