18FLPC Series Linear Potentiometer
Conductive Plastic Model, shaft with a ball tip and fixing nail mounting to the body
Key features
- Industrial conductive plastic model
- Measurement range: 25 mm and 50 mm
- Resistance value: 500 Ω to 10 kΩ
- Linearity tolerance: ±0.5%, ±0.2% and ±0.1%
- Body dimensions (mm): 18x18x63 or 18x18x68
About the 18FLPC Series Linear Potentiometer

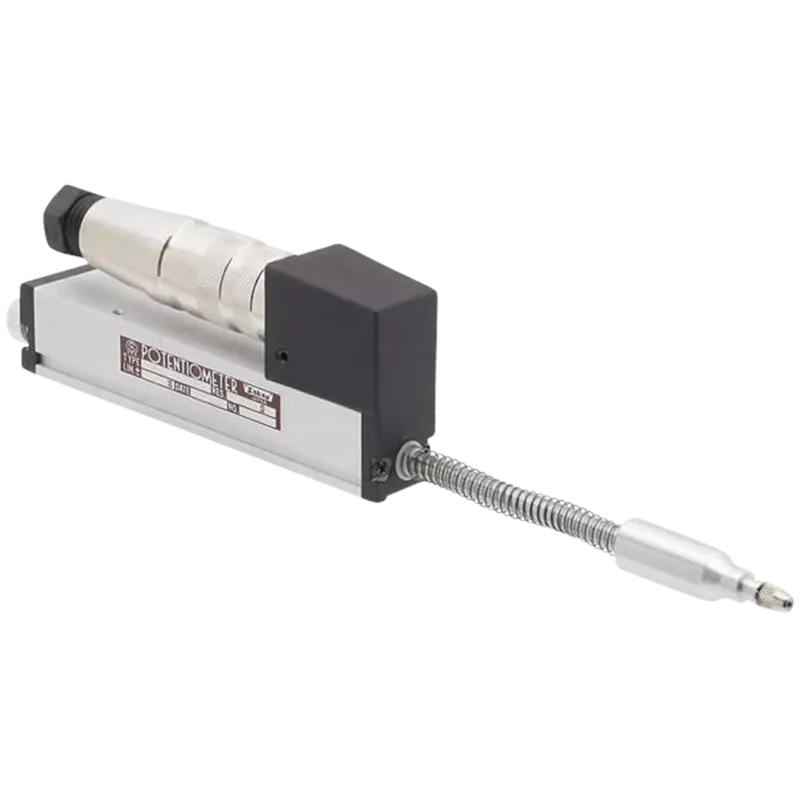

The 18FLPC has a connector block on the housing case and a shaft with a spring return device and a ball tip at the end of shaft.
In the 18FLPC Series we have the 18FLPCC25RE and the 18FLPCC50RE.
Special Specifications available
Higher resistance value (20kΩ, 50kΩ [50kΩ is available for 18FLPCC50RE only] ), Stroke 75mm (S18FLPCC75), stroke 100mm (S18FLPCC100), stroke 150mm (S18FLPCC150), stroke 200mm (S18FLPCC200), sealed type (IP54, the length of "A" is extended by abt. 12mm), with spring return device (available 75mm & 100mm stroke, friction is approx. 3N [300gf]. Spring return device is mounted on the outer shaft), with a cardan joint (without spring return device). Extra taps (available up to 1 tap and only on the version with a connector). In case of leadwire terminals, the dimensions are as the right drawing: (the dimensions of "A", "B" & "L" are the same as above table), leadwire length is 1m.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Precision class: ±0.2%, ±0.1% | |
| Contact resistance variation | Within 2% C.R.V. |
| Dielectric strength | 1 minute at 500V.A.C. |
| Friction | Within 3N (300gf) |
| Independent linearity tolerance | Standard class: ±0.5% |
| Insulation resistance | Over 1.000MΩ at 500VDC |
| Mass | Approx. 100g, approx. 150g |
| Output smoothness | Within 0.1% against input voltage |
| Power rating | 0.5W, 0.75W |
| Resistance temperature coefficient | ± 400p.p.m./°C |
| Resolution | Essentially infinite |
| Standard resistance values | 500Ω, 1kΩ, 2kΩ, 5kΩ, 10kΩ |
| Stopper strength | Approx. 90N (9kgf) |
| Stroke | 25mm, 50mm |
| Total resistance tolerance | ±10% |
| With spring return device | Fitted (standard) |
