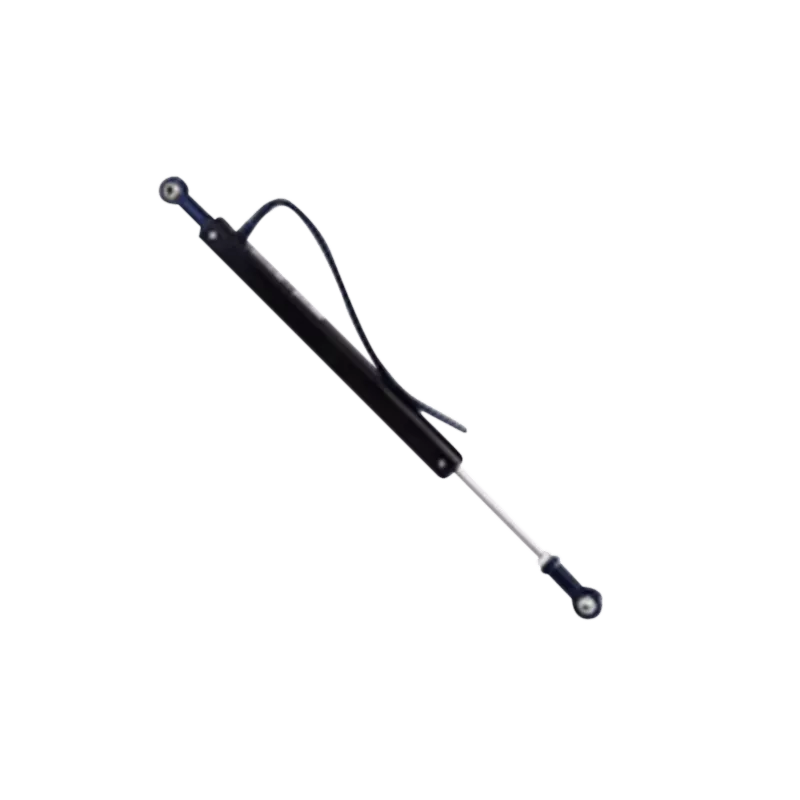

CLP Linear Potentiometer
Developed specifically to meet the needs of the auto racing industry and proven in industrial applications
Key features
- Absolute Linear Position to 10 inches (250 mm)
- Resistance: 2.5 kΩ - 10 kΩ
- High Cycle Applications
- Factory Automation or Auto Sport Instrumentation
- IP65 Protection
About the CLP Linear Potentiometer
Developed specifically to meet the needs of the auto racing industry and proven in industrial applications, our CLP series position transducers offer unrivaled performance in terms of accuracy, repeatability, life expectancy and ease of mounting.
The combination of individually corrected conductive plastic elements and precious metal wipers provide a cost effective measuring system which can operate effectively without being unduly influenced by external environmental conditions.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Enclosure material | Aluminum |
| Full stroke range | 25, 50, 75, 100, 150, 200, 250 |
| Life expectancy | > 25 million cycles |
| Linearity (% of span) | .1, .2 |
| Operating speed | 400 inches (10 M) per second max. |
| Output signal | Voltage divider (potentiometer) |
| Repeatability | 0.01 mm |
| Resistance (kΩ) | 10, 2.5, 5 |
| Resolution | Essentially infinite |
| Sensor | Conductive plastic linear potentiometer |
| Weight (g) | 108, 117, 138, 157, 177, 87, 97 |
