CLWG Linear Potentiometer
Unrivaled performance in terms of accuracy, repeatability, life expectancy and ease of mounting
Key features
- Absolute Linear Position to 30 inches (750 mm)
- Resistance: 3 kΩ - 10 kΩ
- High Cycle Applications
- Industrial Automation, Test and Robotics Applications
- IP65 Protection
- M12 Connector
About the CLWG Linear Potentiometer
Developed specifically for a wide range of demanding applications, our CL series position transducers offer unrivalled performance in terms of accuracy, repeatability, life expectancy and ease of mounting. Such applications include industrial automation, automotive and robotics.

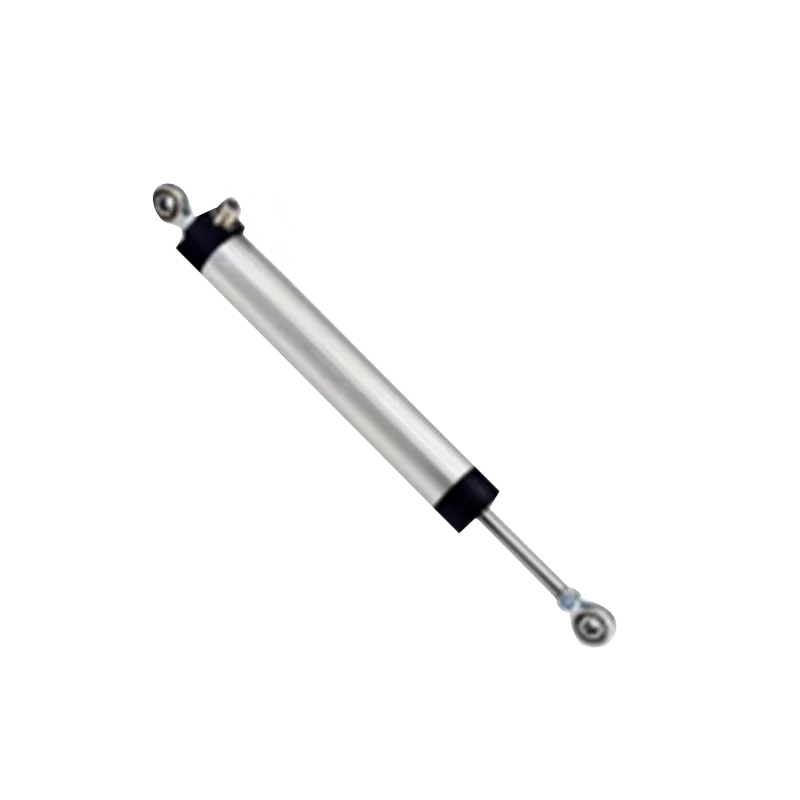

The CLWG uses a twin-bearing actuating rod, backlash-free pivot heads and a superior wiper system to provide outstanding linearity and performance.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Enclosure material | Aluminium |
| Full stroke range | 75, 100, 150, 225, 300, 350, 450, 500, 600, 750 |
| Life expectancy | 50 million cycles |
| Linearity (% of span) | .04, .05, .06, .07, .08, .1 |
| Operating speed | 200 inches (5 M) per second max. |
| Output signal | Voltage divider (potentiometer) |
| Repeatability | < 0.01 mm |
| Resistance (kΩ) | 10, 3, 5 |
| Resolution | Essentially infinite |
| Sensor | Conductive plastic linear potentiometer |
| Weight (g) | 500 |
