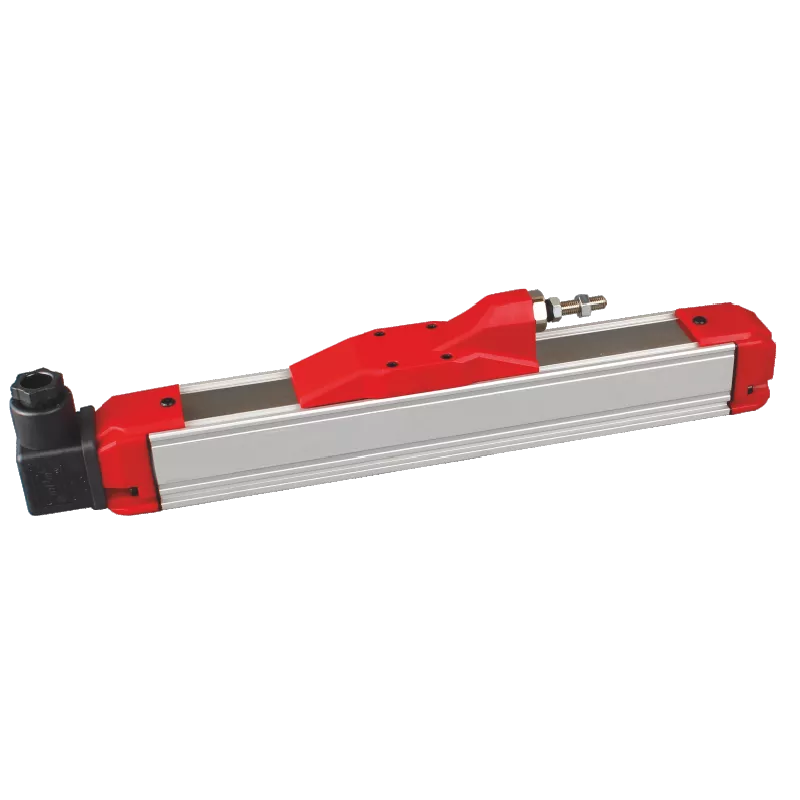

ERPH Linear Potentiometer
Internal voltage, Current Conditioner Circuit
Key features
- Internal electronic circuit
- Measuring range 100 - 1950 mm
- Output 4-20 mA, 0-20 mA, 0-10 V, 20-4 mA, 20-0 mA, 10-0 V
- Very low temperature drift
- Very stable output signal
About the ERPH Linear Potentiometer
The ELPH Linear Potentiometer is a simply mounted, high precision industrial linear motion transducer with internal electronic circuit for more stability.
Key Features ERPH
- Internal electronic circuit
- Measuring range 100 - 1950 mm
- Output 4-20 mA, 0-20 mA, 0-10 V, 20-4 mA, 20-0 mA, 10-0 V
- Very low temperature drift
- Very stable output signal
- Excellent repeatability
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Linearity | ± 0,05% (>200mm), ± 0,1% (130-200mm), ± 0,2% (75-130mm), ± 0,5% (<75mm) |
| Measurement stroke | 100 to 1950 mm |
| Mechanical life | 100 million cycles |
| Output | 4-20mA, 0-20mA or 0-10V |
| Repeatability | <0,01 mm |
