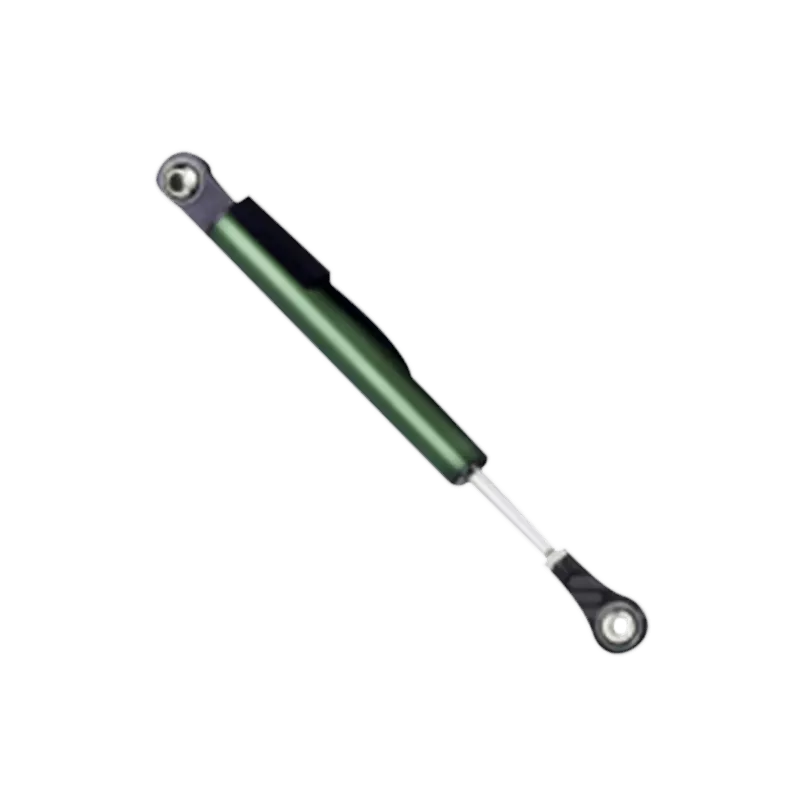

MLP Linear Potentiometer
Offers unrivaled performance in an amazingly small size
Key features
- Absolute Linear Position to 6 inches (150 mm)
- Resistance: 1.25 kΩ - 10 kΩ
- High Cycle Applications
- Industrial Automation, Test & Robotics Applications
- IP67 Protection
- Extended Temperature Range
About the MLP Linear Potentiometer
Our miniature MLP series linear potentiometers offer unrivaled performance in an amazingly small size. Though small, the MLP is environmentally robust (IP67), operates over a broad temperature range (-22° to 300°F) and is
long lasting (>25 million cycles).
These features make our miniature MLP linear potentiometer the perfect solution for many applications including industrial, medical, automotive, and motion control.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Enclosure material | Aluminium |
| Full stroke range | 12.5, 25, 50, 75, 100, 125, 150 |
| Life expectancy | > 25 million cycles |
| Linearity (% of span) | .5, 1 |
| Operating speed | 400 inches (10 M) per second max. |
| Output signal | Voltage divider (potentiometer) |
| Repeatability | .01 mm |
| Resistance (kΩ) | 1.25, 10, 2.5, 5, 7.5 |
| Resolution | Essentially infinite |
| Sensor | Conductive plastic linear potentiometer |
| Weight (g) | 24, 26, 29, 33, 37, 43, 46 |
