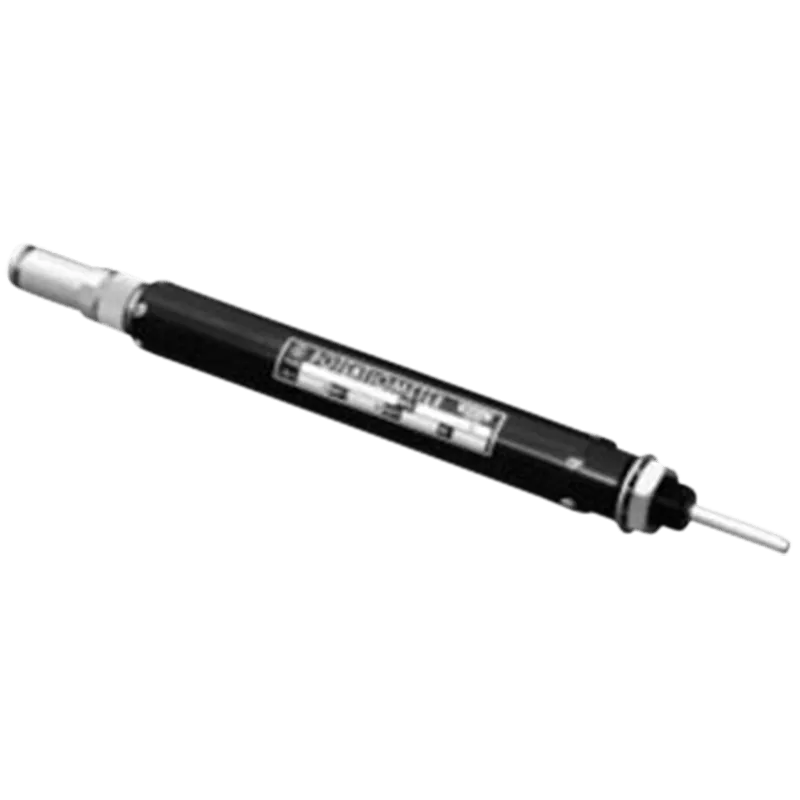

OF20LP Series Linear Oil-filled Potentiometer
Wirewound potentiometer with front extended shaft and with connector
Key features
- Oil-filled wirewound model
- Measurement range: between 50 mm and 200 mm
- Resistance value: 100 Ω to 80 kΩ
- Linearity tolerance: ±0.7%, ±0.5% or ±0.4%
- Various body dimensions available
About the OF20LP Series Linear Oil-filled Potentiometer
The OF20LP is a long-life type potentiometer with a water-proof connector.
The OF20LP50, OF20LP100 and OF20LP200 are part of the OF20LP Series.
Body dimensions (mm): Ø20x(depends on the sensor type)
For specified technical data regarding a specific type from this serie, you can contact us.
Specifications of Connector
- Water-proof type
- Number of poles: 6 poles
- Electrical wire diameter
- To be connected: ø6.3mm max
Special Specifications Available
- Extra taps (available up to 1 tap)
- Special machining on the shaft
- Non-oil filled type.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Precision class: ±0.4%, ±0.25% | |
| Precision class: ±3% | |
| Dielectric strength | 1 minute at 900V.A.C. |
| Friction | Within 15N (1.5kgf) |
| Independent linearity tolerance | Standard class: ±0.7%, ±0.5% |
| Insulation resistance | Over 100MΩ at 500V.D.C. |
| Mass | Approx. 100g, approx. 150g, approx. 180g |
| Max. practical resistance value | 20kΩ, 40kΩ, 80kΩ |
| Noise | Within 100Ω E.N.R. |
| Power rating | 0.75W, 1.0W, 2.0W |
| Resistance temperature coefficient | ±20 p.p.m./°C |
| Standard resistance range | 100Ω~10kΩ, 100Ω~20kΩ, 100Ω~50kΩ |
| Stopper strength | Approx. 90N (9kgf) |
| Stroke | 50mm, 100mm, 200mm |
| Total resistance tolerance | Standard class: ±5% |
