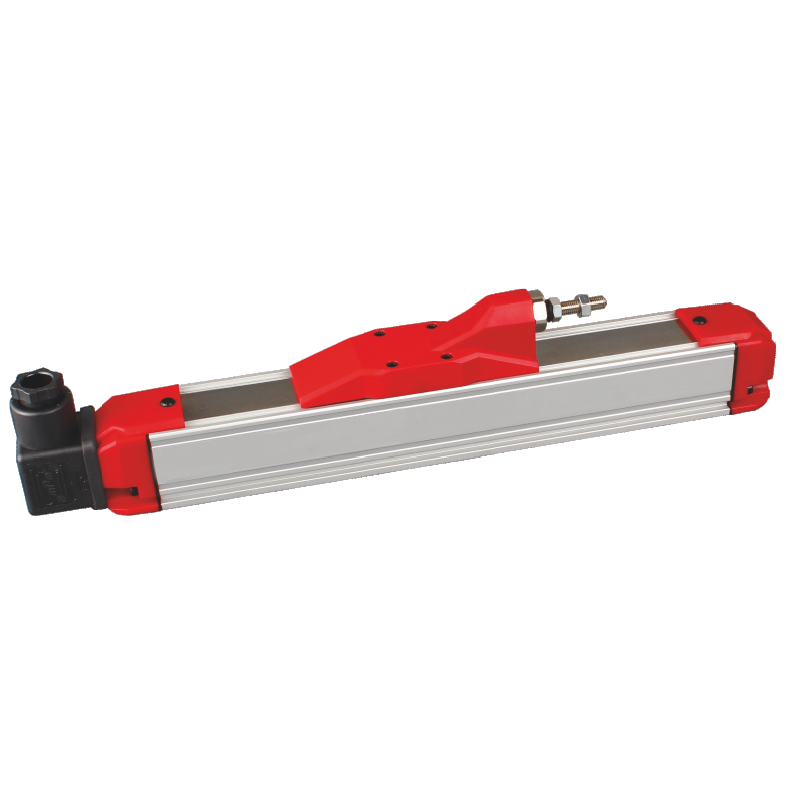

RPH Linear Potentiometer
Standard series
Key features
- Measuring range 100-1950 mm
- Long mechanical life 100 million cycles
- Excellent repeatability <0.01 mm
- Infinite resolution
- 5 kΩ, 10 kΩ or 20 kΩ Resistance
About the RPH Linear Potentiometer
RPH is a simply mounted, high precision industrial linear motion transducer with sliding rod.
Features
Measuring range 100 - 1950 mm
Long mechanical life 100 million movements
Excellent repeatability <0.01 mm
Infinite resolution
5 kOhm : 100 ... 600 mm
10 kOhm: 650 ... 1000 mm
20 kOhm: 1250 ... 1950 mm
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Linearity | ±0,05% (>200mm), ±0,1% (130-200mm), ±0,2% (75-130mm), ±0,5% (<75mm) |
| Load resistance | 100kΩ min |
| Measurement stroke | 100 to 1950 mm |
| Repeatability | < 0,01 mm |
| Resistance | 5kΩ: 100-600 mm / 10kΩ: 650-1000 mm / 20kΩ: 1250-1950 mm |
