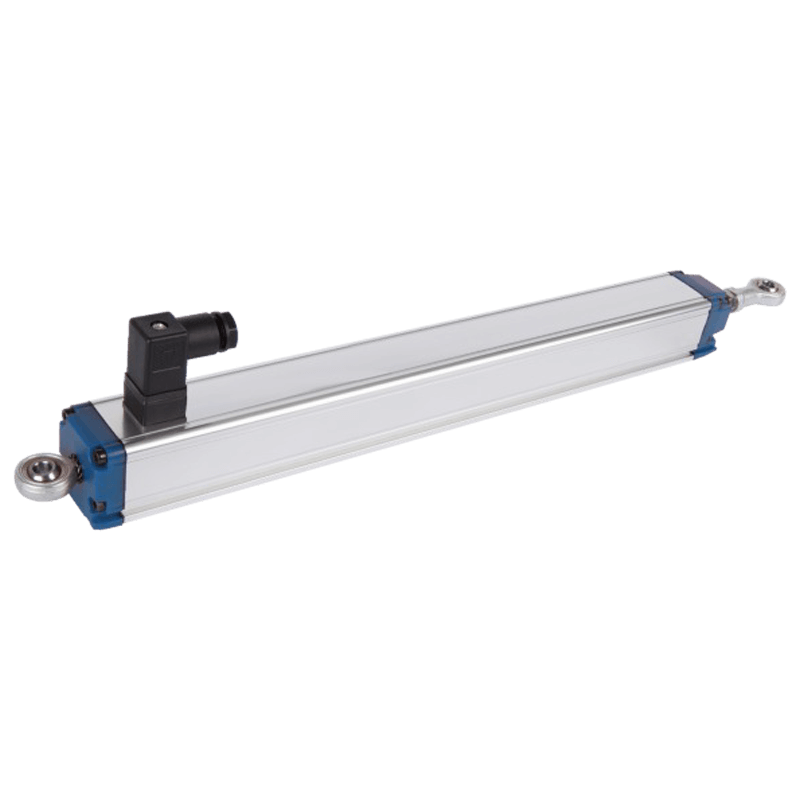

RTM Linear Potentiometer
Ruby Serie | Advanced Design
Key features
- Measuring range 50 - 600 mm
- Long mechanical life 100 million cycles
- Excellent repeatability <0.01 mm
- Infinite resolution
- 5 kΩ or 10 kΩ Resistance
About the RTM Linear Potentiometer
The RTM Linear Potentiometer has a measuring range between 50 and 600 mm.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Electrical connections | 4 pin connector, Cable (optional) |
| Linearity | ±0,05% (>200mm), ±0,1% (130-200mm), ±0,2% (75-130mm), ±0,5% (<75mm) |
| Load resistance | 100kΩ min. |
| Permissible applied voltage | 28VDC max |
| Repeatability | < 0,01 mm |
