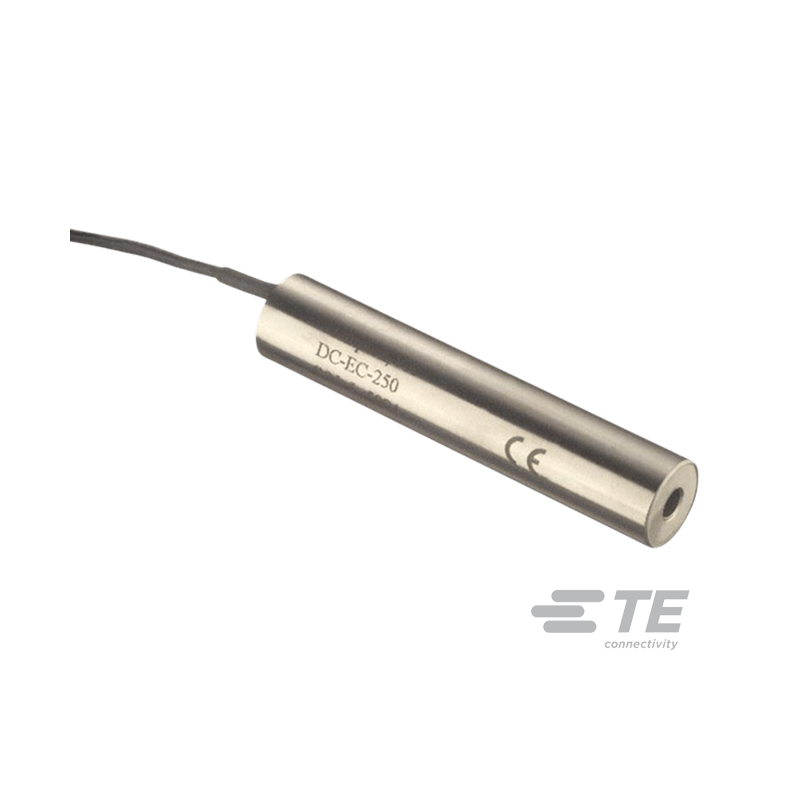

DC-EC Series LVDT Position Sensor
Delivers an extremely linear, low noise, yet high frequency response ±10VDC output
Key features
- DC-operated model
- Measurement range: 1.25 to 250mm
- Non-linearity: ±0.25% FR
- Output: ±10VDC
- Frequency response: 500Hz or 200Hz
About DC-EC Series (General Purpose LVDT)
The DC-EC Series incorporates a unique monolithic chip combined with a computer-designed AC LVDT to achieve premium performance.
The ratiometric design of the monolithic circuitry compensates for power supply deviations for continuously stable operation. Unaffected by input variations, the transducer provides highly accurate, repeatable measurement.
Innovative manufacturing techniques further enhance the DC-EC's operation and cost efficiency. Micro-miniature components used in the construction of each unit are selected for maximum stability.
Vacuum encapsulation of all elements produces an assembly tolerant to shock, vibration and other forms of physical abuse. Double magnetic shielding protects against stray electrical fields.
Applications for DC-EC
- General Purpose LVDT
Options
- Metric Thread Core
- Captive Core Option for Convenient Installation
- Guided Core
- Small Diameter, Low Mass Core
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Cable | 4 conductor, 28 AWG, stranded copper with braided shield and polyurethane jacket, 1 meter |
| Coil form material | High density, glass-filled polymer |
| Emc | CE certified (The DC-EC series, when correctly installed, comply with the EMC Directive 89/336/EEC generic standards for residential commercial, light industrial and industrial environments.) |
| Housing material | AISI 400 series stainless steel |
| Null voltage | 0 VDC |
| Output impedance | Less than 1 ohm |
| Ripple | Less than 25mV rms |
| Stability | 0.125% full scale |
| Survival | 250g for 11 milliseconds |
| Survival temperature range | -65°F to 200°F (-55°C to 95°C) |
| Temperature-coefficient of scale factor | 0.04%/°F (0.08%/°C) Shock |
| Vibration tolerance | 10g up to 2khz |
