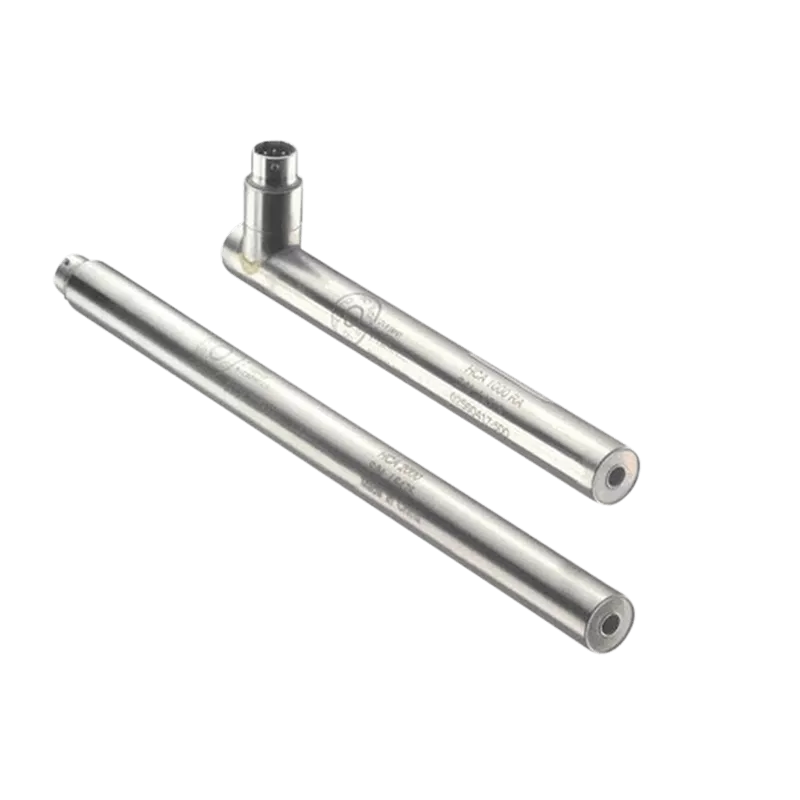

HCA-RA LVDT Position Sensor
Premium performance in harsh industrial environments, the all-welded stainless steel construction withstands external pressures up to 1000 PSI (70 Bar)
Key features
- Right angle (HCA-RA) version available
- Suitable for Hostile Environments
- Connector Termination
- All-welded stainless steel construction
- Glass sealed, MS type connector (MIL-C-5015)
- Shock and vibration tolerant
About the HCA-RA Series - Hermetically Sealed LVDT
The HCA/HCA-RA Series hermetically sealed LVDTs provide premium performance in harsh industrial environments. Impervious to dirt, water, steam and corrosive liquids and vapors compatible with its materials, the HCA/HCA-RA Series all-welded stainless steel construction withstands external pressures up to 1,000 PSI [70 bars]. Double magnetic shielding offers excellent protection from external electromagnetic fields.
The HCA/HCA-RA Series can be configured with a number of standard options including but not limited to high temperature operation (+220°C) and mild radiation resistance (1012 NVT total integrated flux; 107 rads Gamma). The HCA/HCA-RA Series is compatible with the full line of Althen LVDT signal conditioners.
The HCA-RA version adds the convenience of a radial connector termination. This feature decreases the required installation space, while also allowing debris to harmlessly pass through the ‘open-ended’ bore.
Captive core option: The HCA/HCA-RA features an optional captive core design that greatly simplifies installation. The core rod and bearing assembly includes a Bronze bearing on the front end for self-alignment, while a Teflon sleeve allows low-friction travel through the stainless steel boreliner (spool tube). The core rod and the bearing assembly are both field serviceable.
Also see our models with built-in signal conditioning: HCD (DC voltage), HCT-IS (4-20mA 2-wire loop; CSA/FM Intrinsically Safe) and HC-485 (RS-485 Digital Series), also available in the -RA (Right Angle) versions.
Other features HCA-RA
- Captive core eases installation (optional)
- Calibration certificate supplied with each unit
- Mild radiation resistance (optional)
- High Temperature (220°C) Available OPTIONS:5.0 and 10.0 kHz Excitation Frequency Testing*
- Metric Thread Core
- Guided Core
- Small Diameter/Low Mass Core
Applications for HCA-RA
- Harsh industrial environments
- Submersible (with appropriate connector)
- Pressure vessels
- Corrosive liquid and vapor areas (check materials)
- Mild radiation areas
- Turbine valve
Do you need this sensor for your next project?
Request a quotation today or leave your details to recieve more information from one of our experts.
Product downloads
Have it your way
Not exactly what you’re looking for? We offer standard sensors but can also help you with a tailor-made sensor or a complete measuring solution. Please contact us for advice or budgetary pricing.
Talk to an expertTechnical Specifications
Specification | Value |
---|---|
Electrical connector | 6-pin MS type connector |
Housing material | AISI 400 Series stainless steel |
Measurement range | 1.27 to 254mm |
Non-linearity | ±0.25% FR |
Operating temperature | -55°C to 150°C |
Output | 210 to 1300mV/V |
Rating | IP68 to 1,000 PSI (70 bar) with the use of proper mating connector plug |
Shock survival | 1,000g |
Vibration tolerance | 20g up to 2kHz |
