HCA Series LVDT Position Sensor

Hermetically sealed LVDTs which provide premium performance in harsh industrial environments


Key features

  • Heavy duty AC-operated model
  • All-welded stainless steel construction
  • Glass sealed, MS type connector (MIL-C-5015)
  • Shock and vibration tolerant
  • Suitable for Hostile Environments
  • Connector Termination

About the HCA Series - Hermetically Sealed LVDT

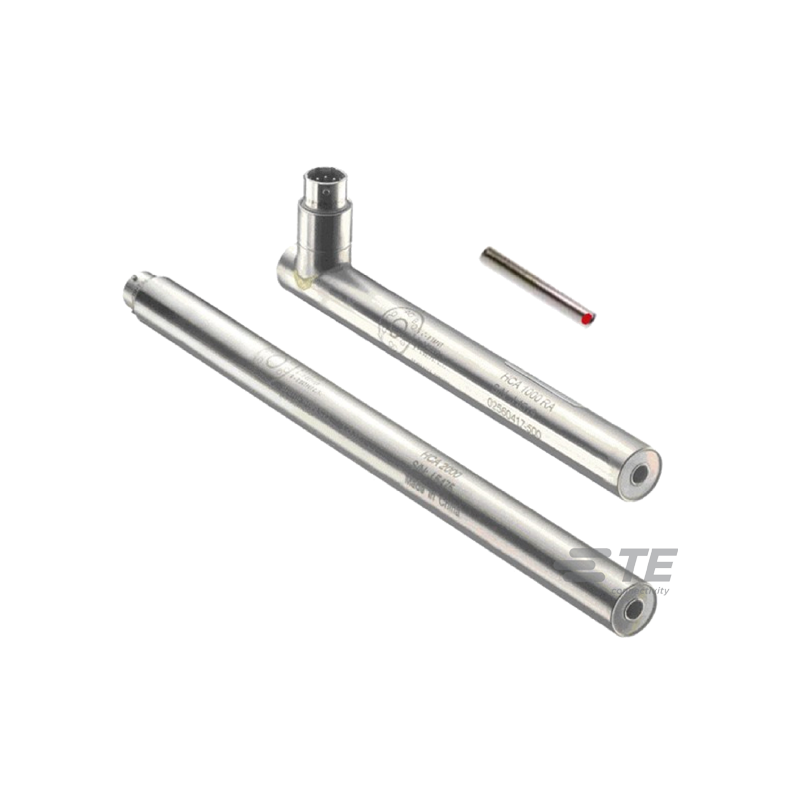

The HCA/HCA-RA Series hermetically sealed LVDTs provide premium performance in harsh industrial environments. Impervious to dirt, water, steam and corrosive liquids and vapors compatible with its materials, the HCA/HCA-RA Series all-welded stainless steel construction withstands external pressures up to 1,000 PSI [70 bars]. Double magnetic shielding offers excellent protection from external electromagnetic fields.
The HCA/HCA-RA Series can be configured with a number of standard options including but not limited to high temperature operation (+220°C) and mild radiation resistance (1012 NVT total integrated flux; 107 rads Gamma). The HCA/HCA-RA Series is compatible with the full line of Altheris LVDT signal conditioners.

The HCA-RA version adds the convenience of a radial connector termination. This feature decreases the required installation space, while also allowing debris to harmlessly pass through the ‘open-ended’ bore.

Captive core option: The HCA/HCA-RA features an optional captive core design that greatly simplifies installation. The core rod and bearing assembly includes a Bronze bearing on the front end for self-alignment, while a Teflon sleeve allows low-friction travel through the stainless steel boreliner (spool tube). The core rod and the bearing assembly are both field serviceable.

Also see our models with built-in signal conditioning: HCD (DC voltage), HCT-IS (4-20mA 2-wire loop; CSA/FM Intrinsically Safe) and HC-485 (RS-485 Digital Series), also available in the -RA (Right Angle) versions.

Other features HCA Series

  • Captive core eases installation (optional)
  • Mild radiation resistance (optional)
  • Calibration certificate supplied with each unit
  • Right angle (HCA-RA) version available
  • High Temperature (220°C) Available OPTIONS:5.0 and 10.0 kHz Excitation Frequency Testing*
  • Metric Thread Core
  • Guided Core
  • Small Diameter/Low Mass Core

Applications for HCA Series

  • Harsh industrial environments
  • Submersible (with appropriate connector)
  • Pressure vessels
  • Corrosive liquid and vapor areas (check materials)
  • Mild radiation areas
  • Turbine valve

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Electrical connector 6-pin MS type connector
Housing material AISI 400 Series stainless steel
Measurement range 1,27 to 254mm
Non-linearity ±0.25%
Operating temperature -55°C to 150°C
Output 210 to 1300mV/V
Rating IP68 to 1,000 PSI (70 bar) with the use of proper mating connector plug
Shock survival 1,000g
Vibration tolerance 20g up to 2kHz
