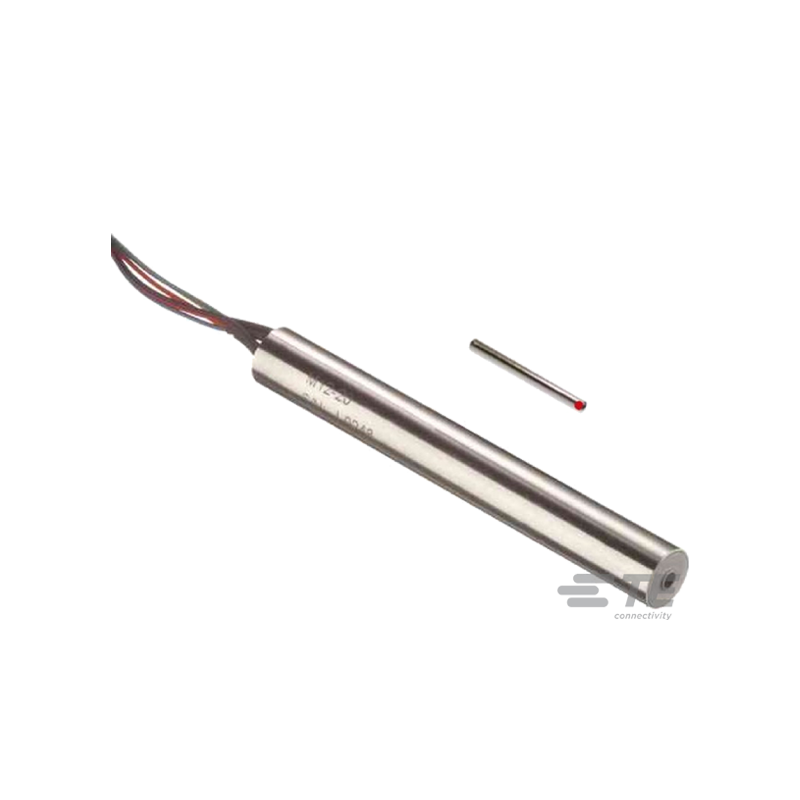

M-12 Series LVDT Position Sensor
Premium performance at standard LVDT pricing
Key features
- Layer-wound AC-operated model
- Small 12mm diameter case
- Low temperature coefficient of sensitivity
- Excellent stroke to length ratio
- Smooth transfer function
- Constant sum of secondary output voltages
About the M-12 Series - layer wound LVDT
The M-12 Series of layer-wound LVDTs offer premium performance at standard LVDT pricing. The M-12 series are wound with state-of-the art, computerized winding machines on a ribless bobbin, resulting in the smooth transfer function required for the most demanding materials testing and position feedback applications. Precision distribution and tapering of the layer windings provide an excellent stroke to length ratio, without sacrificing sensor linearity.
A constant sum of the secondary output voltages, throughout the linear range, insures compatibility with ratiometric temperature compensation signal conditioning schemes for even lower temperature coefficients. The M-12 Series coil designs have been optimized to provide the lowest possible temperature coefficient of sensitivity, while maintaining suitability for operation with extended cable lengths.
An internal high-permeability magnetic shield provides protection in the noisiest electromagnetic environments, while the high-quality AISI 304 Series stainless steel housing protects the LVDT from corrosion in aggressive environments. Vacuum coil impregnation and epoxy encapsulation ensure long term stability and protection from contaminants in the most hostile, high vibration applications.
Other features M-12 Series
- Electromagnetic shielding AISI 304 Series stainless steel case
Applications for M-12 Series
- Materials testing extensometers
- Cylinder position feedback
- Hydraulic spool valve position feedback
- Roller gap positioning
- Automotive suspension testing
- Flight simulators
- Aircraft flight control feedback
Do you need this sensor for your next project?
Request a quotation today or leave your details to recieve more information from one of our experts.
Product downloads
Have it your way
Not exactly what you’re looking for? We offer standard sensors but can also help you with a tailor-made sensor or a complete measuring solution. Please contact us for advice or budgetary pricing.
Talk to an expertTechnical Specifications
Specification | Value |
---|---|
Housing material | AISI 304 Series stainless steel |
Measurement range | 10 to 100mm |
Non-linearity | ±0.25% |
Operating temperature | -55°C to 150°C |
Output | 300 to 710mV/V |
Rating | IP61 |
Shock survival | 500g |
Test frequency | 2.5kHz |
Vibration tolerance | 20g up to 2kHz |
