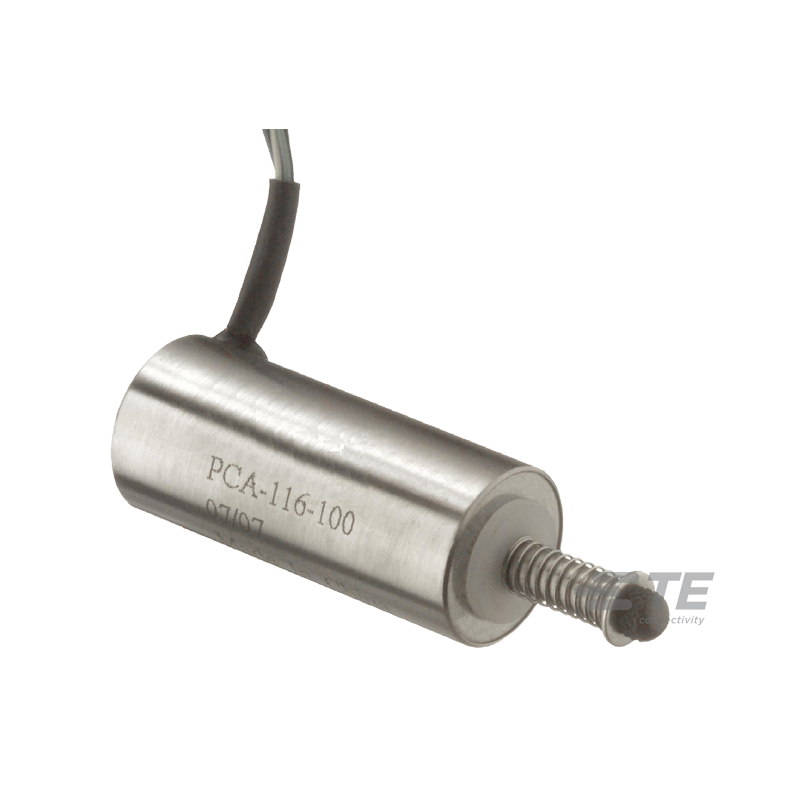

PCA-116 Series LVDT Position Sensor
Developed to serve less demanding applications where the balance between price and performance is paramount
Key features
- Industrial AC-operated gage head
- Stainless steel housing
- Very good reliability
- Low friction Nylon sleeve bearings
- Replacement and other special tips available
About the PCA-116 Series - Gage Heads
The PCA-116 Series gage heads were developed to serve less demanding applications, where the balance between price and performance is paramount. Incorporating a standard LVDT (Linear Variable Differential Transformer), low friction nylon sleeve bearings and an externally spring loaded shaft, the PCA-166 affords the most cost effective gaging solution available. Other features include industry standard outer diameter for easy installation, and a replaceable hardened tool steel contact tip using the 4-48 UNF-2 threads.
Applications for PCA-116 Series
- Less demanding applications where cost effective performance is paramount
- Honing machines
- Factory automation in mild environments
- Elevator ride controls
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Housing material | AISI 400 Series stainless steel |
| Measurement range | 2.54 to 7.62mm |
| Non-linearity | ±0.5% FR |
| Operating temperature | -55°C to 95°C |
| Output | 240 to 360mV/V |
| Rating | IP61 |
| Test input frequency | 2.5kHz |
