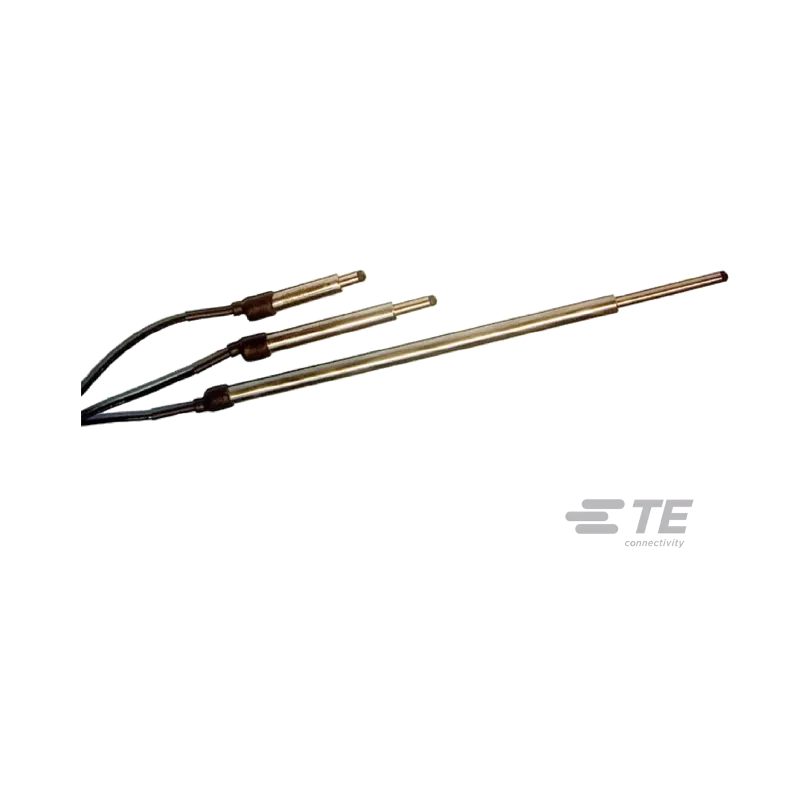

PCA-375 PR-020 Series LVDT Position Sensor
Ultra-compact device that provides accurate measurement in areas with limited space
Key features
- Compact AC-operated gage head
- Compact, slim profile
- 2.6oz [73 Grams] spring force
- Excellent stroke to length ratio
- Compatible With All Signal Conditioners
- 7 Connector Options and Special Contact Tips Available
About the PCA-375-PR 020 - Compact AC Gage Head
The PCA-375 PR-020 gage head is an ultra-compact device that provides accurate measurement in areas with limited space. Utilizing a radial cable exit, the slim, low profile of the PCA-375 PR-020 easily fits within miniature fixtures and small inside diameters. With the time proven reliability of its LVDT (Linear Variable Differential Transformer) and measuring just 0.375 inch [9.5mm] in diameter the PCA-375 PR-020 affords non-intrusive, slim profile measurements, making it the perfect choice for high density fixtures as well as numerous other industrial applications.
Externally, the PCA-375 PR-020 is constructed of 300 Series stainless steel, with a field replaceable chrome plated hardened tool steel contact tip. Internally, the LVDT, along with a permanently lubricated bronze bearing and plunger assembly, provide long term repeatability and reliability. Electrical termination is via a 2 meter long, 6 conductor, shielded polyurethane jacketed cable.
Like in most of our LVDTs, the PCA-375 PR-020 windings are vacuum impregnated with a specially formulated, high temperature, flexible resin, and the coil assembly is potted inside its housing with a two-component epoxy. This provides excellent protection against hostile environments such as high humidity, vibration and shock.
Designed to service applications with limited space availability, the PCA-375 PR-020 is ideal for bore gages, or in practically any location where space is at a premium. Available with optional pre-wired connectors, and a variety of replaceable contact tips, it can be installed directly into standard AGD dial indicator mounting hardware without modification, affording maximum versatility.
Other features PCA-375 PR-020 Series
- Stainless Steel construction
- Calibration certificate supplied with each unit
Applications for PCA-375 PR-020 Series
- High density gaging fixtures
- Bore gages
- Gaging of intricate parts
- Space restricted areas
- Short stroke measurements
- Pressing Applications
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Housing material | AISI 300 Series stainless steel |
| Input impedance (primary) | 94.5 Ω |
| Ip rating | IP-66 (at cable exit) IP-60 (at the plunger) |
| Measurement range | 0.51mm |
| Non-linearity | ±0.5% FR |
| Operating temperature | -18ºC to 121ºC |
| Output | 100mV/V |
| Output impedance (secondary) | 214 Ω |
| Phase shift | +60° |
| Repeatability | 40 micro-inches |
| Test input frequency | 5kHz |
