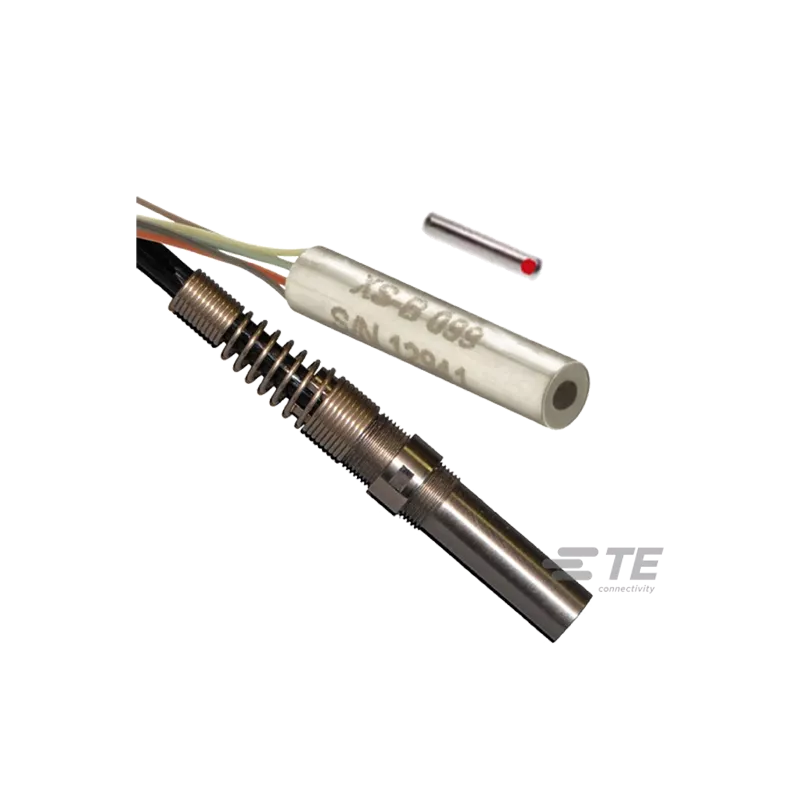

XS-B Series LVDT Position Sensor

---

Key features

• Compact AC-operated model
• 0.250” [6.35mm] max diameter
• Threaded mount version available (XS-BG)
• Lead-wires (XS-B) or cable (XS-BG)
• Axial and radial cable exit (XS-BG)
• Electromagnetic shielding

---

About the XS-B series - subminiature LVDT

The XS-B series of subminiature LVDTs were specifically designed for micro applications, where small physical size is the prime requirement. Featuring an extremely low core weight, the XS-B Series are the perfect choice for high speed displacement measurements, measurement of delicate materials and films, or where heavier cores would influence the measurement result.

The XS-B Series are available in stroke ranges of ±0.1 inch [±2.54mm] or ±0.25 inch [±6.35mm], standard or threaded mounting configurations, and in flying lead or polyurethane jacketed lead termination (all model dependent). All models incorporate a ferromagnetic stainless steel housing providing electromagnetic and electrostatic shielding. The XS-B Series is compatible with most LVDT signal conditioners, controllers and readouts (c onsult fac tory) .

Other features XS-B Series

• Stainless steel housing
• Calibration certificate supplied with all units

Applications for XS-B Series

• Servomechanisms
• Robotics
• Surfometers
• Measurement of films/delicate materials
• Space restrictive applications
• Multi-point measurement of small components
• Measurements at high displacement speeds

---
