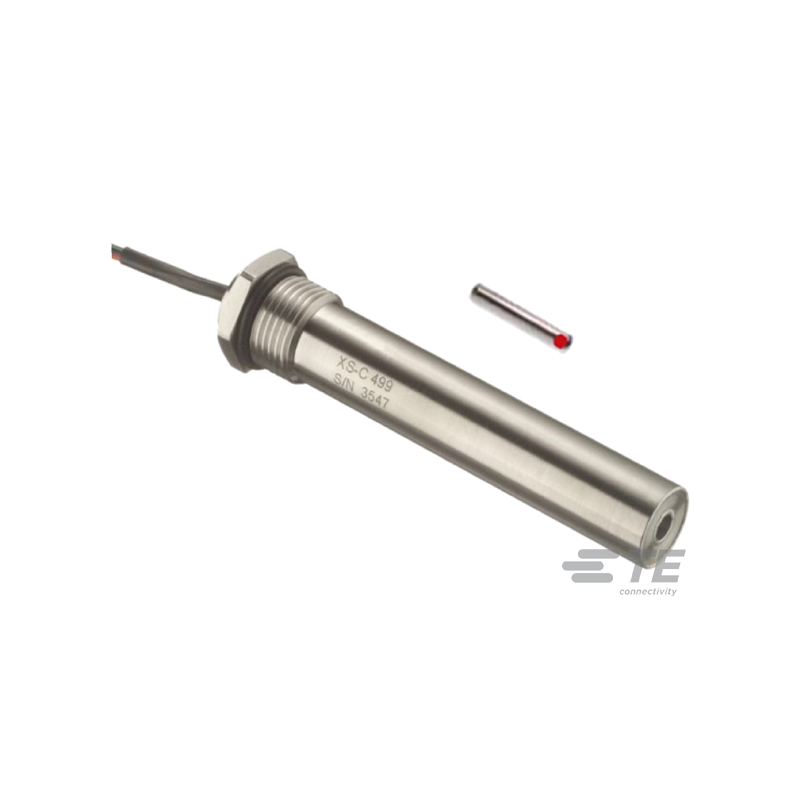

XS-C Series LVDT Position Sensor
Suitable for operating pressures up to 3000 PSI (proof pressures up to 4500 PSI)
Key features
- High pressure sealed AC-operated model
- Sealed 304 Series stainless steel housing
- High pressure and temperature operation
- Bulkhead mount design
- 400Hz to 5KHz operating frequency range
- Shock and vibration tolerant
- Calibration certificate supplied with all units
About the XS-C series - High Pressure sealed LVDT
The XS-C Series high pressure sealed LVDTs are the ideal solution for displacement measurement in pressure-sealed chambers, hydraulic actuators and pressure vessels. Constructed with heavy-wall 304 Series stainless steel, the all-welded XS-C is highly resistant to corrosive environments. It is suitable for operating pressures up to 3,000 PSI (proof pressures up to 4,500 PSI) and temperatures up to +300oF [+150oC].
The XS-C is available in stroke ranges of ±0.25 inch [±6.35mm] to ±1 inch [±25.4mm], with imperial or metric threaded cores. All models incorporate internal magnetic and electrostatic shielding, protecting it from external magnetic influences. The XS-C Series is compatible with all Althen LVDT signal conditioners, controllers and readouts.
Applications for XS-C Series
- Hydraulic actuators
- Pressure chambers & vessels
- Continuous casting mold clamping
- Ton-dish slide valve position feedback
- Automatic transmission servo testing
- Rolling mill gap feedback
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Housing material | AISI 304 Series stainless steel |
| Measurement range | 6.35 to 25.4mm |
| Non-linearity | ±0.25% FR |
| Operating pressure | 3,000 PSI |
| Operating temperature | -55°C to +150°C |
| Output | 425 to 800mV/V |
| Proof pressure | 4,500 PSI |
| Rating | IP61 |
| Shock survival | 1,000g |
