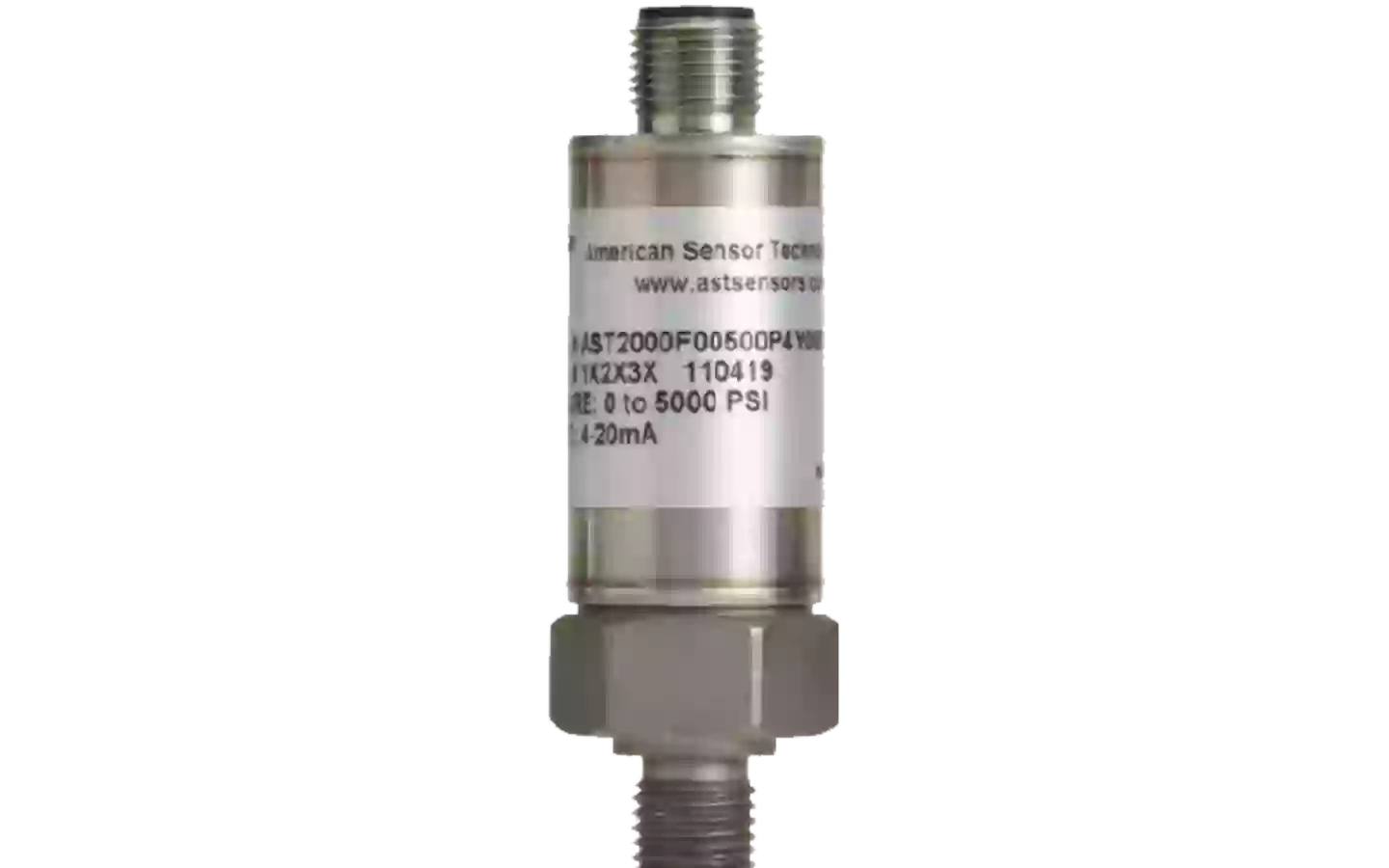

AST2000 Hydrogen Pressure Transducer

Hydrogen measurement with high performance digital compensation


Key features

  • One piece design
  • All 316L wetted material for optimal compatibility
  • No oil-filled cavities leave no chance of containment
  • Non-welded diaphragm eliminates leak paths and weak points
  • Digitally compensated
  • Krystal Bond™ Technology

About the AST2000 Hydrogen Pressure Transducer

The AST2000 series is now available for hydrogen pressure sensing applications. Tested to a variety of hydrogen and automotive standards, the AST2000 series combines the best mechanical design for hydrogen measurement with high performance digital compensation.

Applications AST2000

  • PEM Fuel Cells l Hydrogen Storage
  • Hydrogen Filling Stations l Test Stands
  • Back Up Power

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Accuracy 0.25%
Electrical connection 6 Pin Bendix PT06A, Deutsch DT04-3P, Deutsch DT04-4P, M12x1, Mini-DIN 43650C, Packard Metripack 150
Measurement range 0 - 2 to 0 - 700 bar
Operating temperature -40 to 125 °C
Output 0.5 – 4.5 V, 1 – 5 V, 1 – 6 V, 4 – 20 mA
Overpressure 2X, Min
Port material 17-4PH, 316L
Pressure port/fitting 1/4 MBSPP, 1/4 MNPT, 1/8 MNPT, 7/16-20 UNF Female, 7/16-20 UNF Male
Pressure type gauge, compound, sealed
Supply voltage 10 – 28 V, 4.75 – 5.25 V
