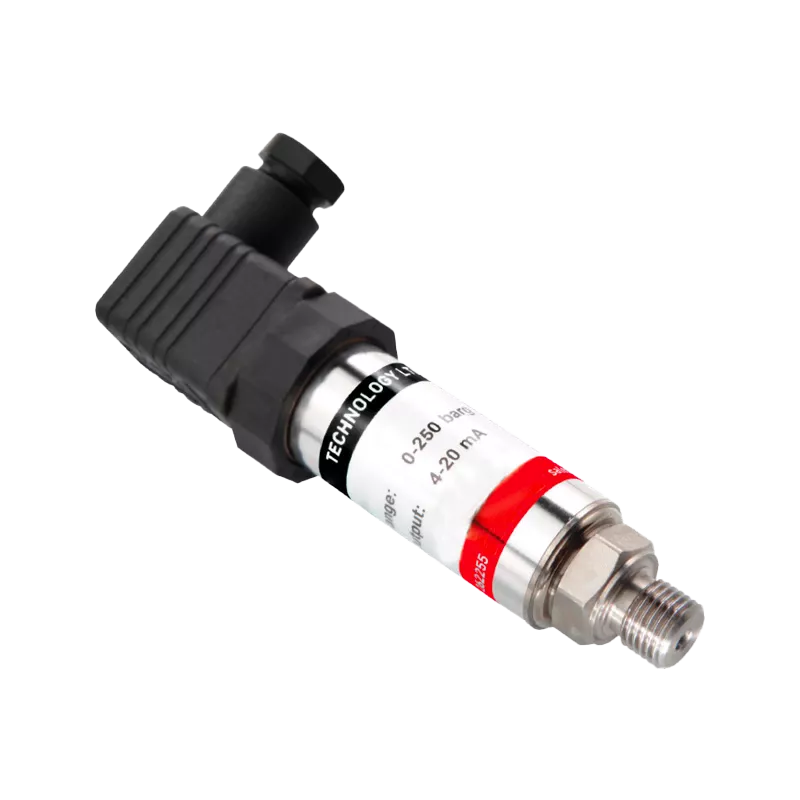

AGS4200H Hydrogen Compatible Pressure Transducer

---

Key features

• Compatible for use within Hydrogen based environment
• Silicon-on-Sapphire sensor technology for outstanding performance
• Tested to ISO 11114-2:2017 according to EC79/2009 and EU406/2010
• Pressure ranges to 1,500 bar
• ATEX/IECEx option available (includes M1 for mining applications)



---

About the AGS4200H Hydrogen Compatible Pressure Transducer

The GENSPEC AGS4200H pressure transmitter is designed using special titanium alloy measurement cell and wetted parts. Suitability of the material is confirmed following hydrogen compatibility testing based on ISO 11114-2:2017 according to the European Regulations EC 79/2009 and EU 406/2010.

The unique Silicon-on-Sapphire sensor technology provides outstanding performance and gives excellent stability over a wide temperature range. The advanced sensor design consists of a piezoresistive silicon strain gauge circuit, which is epitaxially grown onto the surface of a sapphire diaphragm to form a single crystalline structure. The sapphire sensor element is then molecularly bonded to a titanium alloy sub-diaphragm. This enables the sensor to endure higher over- pressures and provides superb corrosion resistance. The sensor exhibits virtually no hysteresis and excellent long-term stability. With outstanding insulation properties, the sapphire substrate allows the sensor to operate over a very wide temperature range without loss of performance.

Standard accuracy is ±0.25% with an over pressure limit of twice the rated pressure range, this together with easy access for re-calibration affirm the excellent design. All models are supplied with integral 1/4” BSP or alternative pressure connections. Optional higher accuracy, outputs and electrical connections are available. The all titanium alloy wetted parts offer unbeatable corrosion resistance. Versions are also available offering IP66 sealing for installations requiring high levels of environmental protection. Applications for the AGS4200 include the continuous monitoring of hydraulic systems with oil, gas, water and other process liquids, industrial, medical and aerospace industries. Also ideal for the measurement and control of pressure in refrigeration, pneumatic, compressor, HVAC and engine monitoring systems.

Available options include ATEX and IECEx approved version for explosion protection for flammable gases (zone 0), dusts (zone 20) and mining areas (group I M1) and/or Marine version complying with DNV GL rules for classification of ships, high speed & light craft and DNV GL offshore standards.

Application areas

• Process technology
• Process measurement technology
• Test and research facilities
• Test bench area of ​​the automotive, aerospace industry, petroleum and gas exploration
• Plants and systems for energy generation and generation

Key Features

• Compatible for use within Hydrogen based environment
• Silicon-on-Sapphire sensor technology for outstanding performance
• Tested to ISO 11114-2:2017 according to EC79/2009 and EU406/2010
• Pressure ranges to 1,500 bar
• Specialist High Strength titanium alloy sensor
• Excellent Corrosion resistance High resistance to overpressure and pressure transients
• ATEX/IECEx option available (includes M1 for mining applications)
• DNV-GL certification available

---
