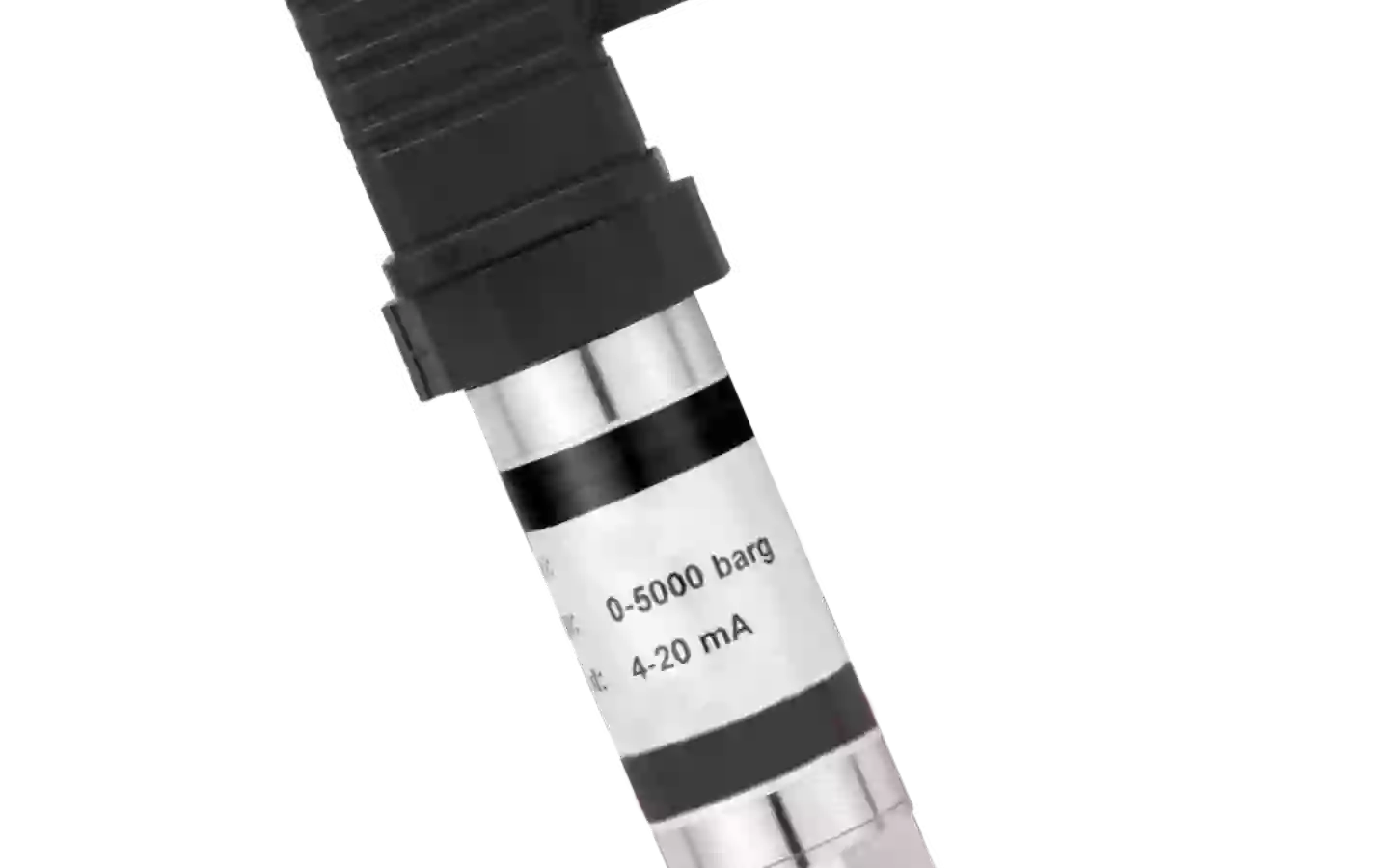

AHP1000H Hydrogen compatible high-pressure transducer

---

Key features

• Pressure ranges to 5.000 bar
• Compatible for use within Hydrogen based environments
• High resistance to over-pressure and pressure transients
• Silicon-on-Sapphire sensor technology for outstanding performance and reliability
• ATEX/IECEx option available (includes M1 for mining applications) for 4-20 mA versions

---

About the AHP1000H Hydrogen compatible high-pressure transducer

The AHP1000 pressure transmitter is designed using a single piece of special high strength titanium alloy with no seals or welds, allowing for use with very high pressure applications. With operating ranges up to 5,000 bar the suitability of the material for use with hydrogen is confirmed following compatibility testing based on ISO 11114-2:2017 according to the European Regulations EC 79/2009 and EU 406/2010.

The unique Silicon-on-Sapphire sensor technology provides outstanding performance and gives excellent stability over a wide temperature range. The wetted parts and pressure diaphragm are machined from a single piece of titanium alloy meaning no weld joints and therefore high pressure integrity and overload capability. All titanium pressure port offers unbeatable corrosion resistance. With a design to meet demanding environments, this transmitter will consistently maintain accurate performance while sustaining high durability. Using the industry standard autoclave process connection enables safe and reliable sealing to such high pressures. Available in pressure ranges from 0-400 bar to 0-5,000 bar and with electrical outputs of 0-100 mV, 0-5V dc, 0-10 Vdc and
4-20 mA. Applications include aerospace, laboratory and test, oil and gas monitoring equipment and general industrial.

An optional ATEX and IECEx approved version of this product is available for explosion protection for flammable gases (zone 0), dusts (zone 20) and mining areas (group I M1). Available options include ATEX and IECEx approved version for explosion protection for flammable gases (zone 0), dusts (zone 20) and mining areas (group I M1) and/or Marine version complying with DNV GL rules for classification of ships, high speed & light craft and DNV GL offshore standards.

Main features AHP1000H

• Compatible for use within Hydrogen based environments
• Pressure ranges to 5,000 bar
• Tested to ISO 11114-2:2017 according to EC79/2009 and EU406/2010
• Silicon-on-Sapphire sensor technology for outstanding performance
• Pressure diaphragm and process connection is machined from one piece of special high strength Titanium alloy with no seals or welds
• High resistance to overpressure and pressure transients
• ATEX/IECEx option available (includes M1 for mining applications) for 4-20 mA versions
• DNV-GL certification available

---
