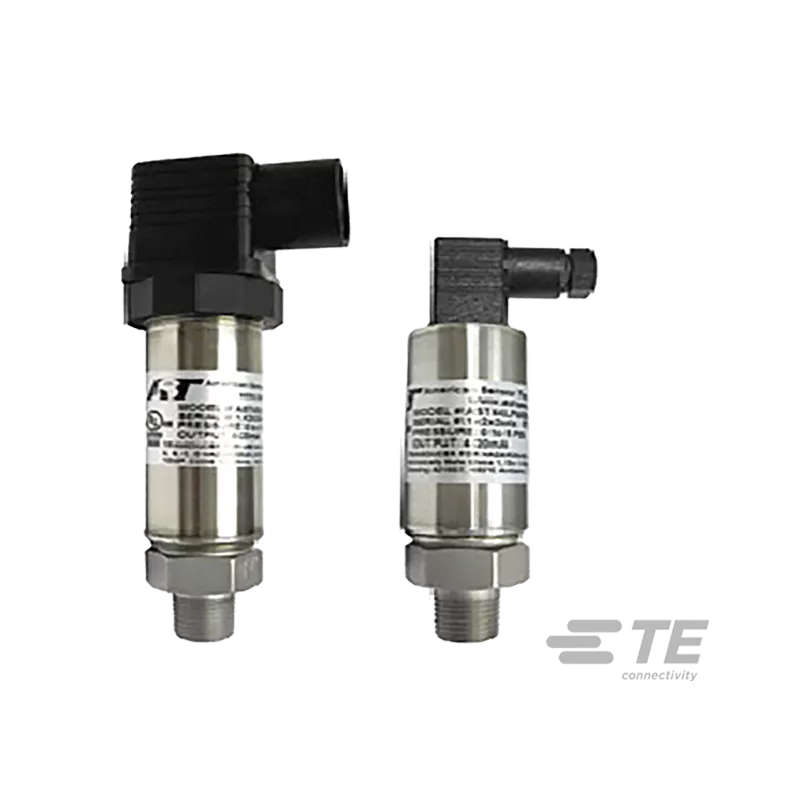

AST44LP Intrinsically Safe Pressure Transducer
Solution for low pressure measurement in intrinsically safe areas
Key features
- High Strength Stainless Steel Construction
- No Internal O-rings
- Wide Operating Temperature
- Pressures from 0-1 to 0-15 PSI
- Low Static and Thermal Errors
- Unparalleled Price and Performance
- Compatible with Wide Variety of Liquids and Gases
About the AST44LP Intrinsically Safe Pressure Transducer
The AST44LP is a stainless steel pressure transducer with a wide variety of options. With its rugged construction and the best price-to-performance ratio in the industry, the AST44LP is the solution for low pressure measurement in Intrinsically Safe areas.
Additional features AST44LP Intrinsically Safe Pressure Sensor
- Class I Div 1 Intrinsically Safe Groups C, D when installed with an approved barrier
- ATEX / IECEx: Class I Zone 0 Exia IIB T4 Ga (Ta = -40°C to +80°C)
Applications AST44LP
- Industrial OEM Equipment
- HVAC/R Equipment
- Water Management and External Tank Levels
- Control Panels
- Pneumatics and Hydraulic Systems
- Vapor Recovery
- Data Loggers
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Accuracy | 0.25% |
| Burst pressure | 5X or 75 PSI (whichever is less) |
| Compensated temperature range | 0 to 55°C |
| Emi/rfi protection | Yes |
| Measurement range | 0 - 70 mbar to 1 bar |
| Operating temperature | -40 to 80°C |
| Output | 4 - 20mA, 1 - 5 VDC, 1 - 6 VDC |
| Over range protection | 2X Rated Pressure, Minimum |
| Pressure type | gauge, absolute, bi-directional |
| Rating | IP66, min |
| Shock | EN 60068-2- 27 |
| Storage | -40 to 100°C |
| Supply voltage | 10 -28 VDC |
| Vibration | EN 60068-2-6, 60068-2-64, and IEC 68-2- 32 |
