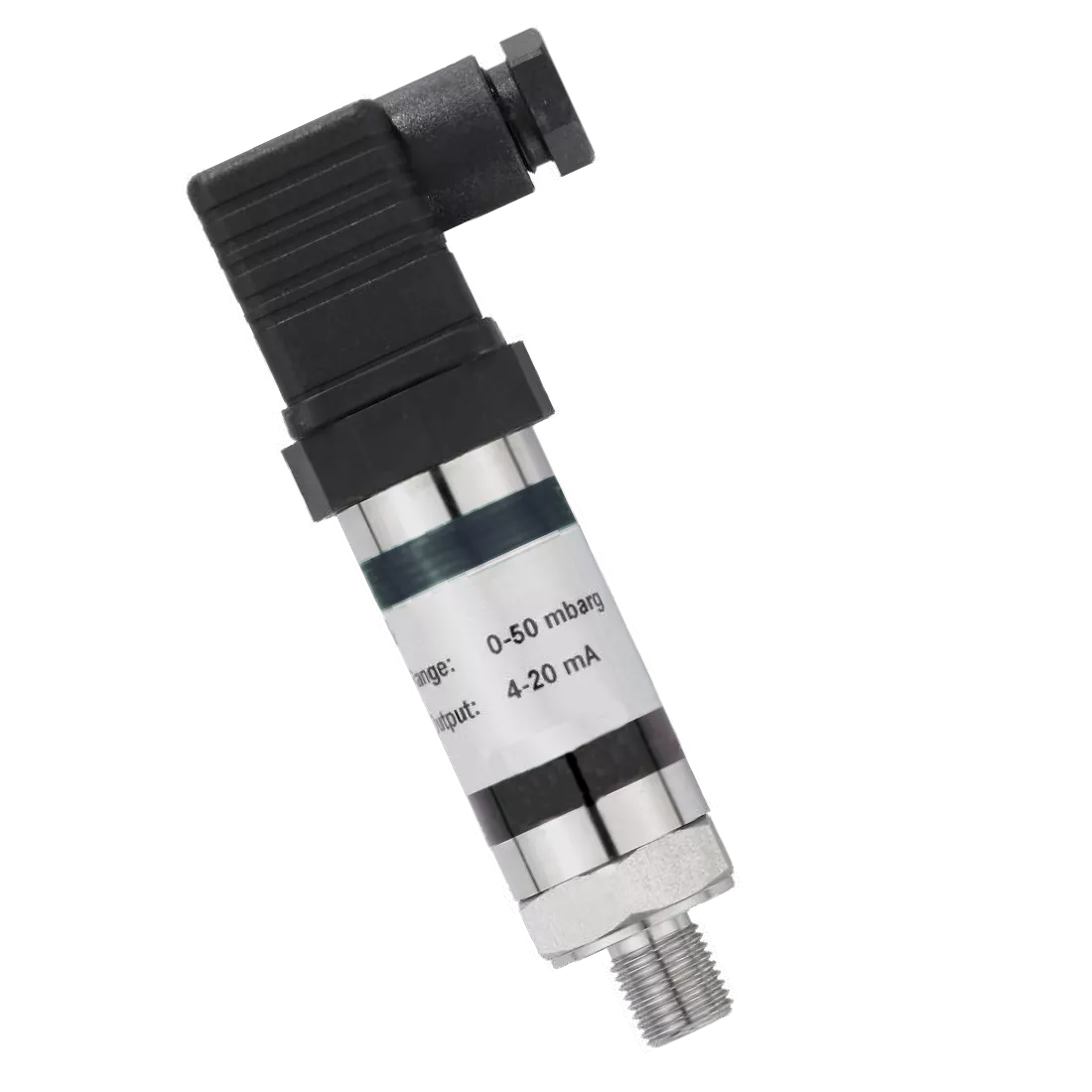

ALP1000 Low Pressure Sensors
ALP1000 series now extends the pressure sensor technology into very low-pressure applications, with operating ranges down to 0-50 mbar whilst still maintaining high performance
Key features
- Piezoresistive sensor technology for high performance
- Low pressure measurement from 50 mbar
- Robust stainless steel construction for durability
- Low hysteresis and excellent long term stability
- Wide operating temperature
- On-site zero and span adjustment
About the ALP1000 Low Pressure Sensors
ALP1000 series now extends the pressure sensor technology into very low-pressure applications, with operating ranges down to 0-50 mbar whilst still maintaining high performance. The advanced sensor design provides very low hysteresis and excellent long-term stability not normally achievable when measuring very low pressure.
The ALP1000 offers a low cost solution for accurate measurement of very low pressures and is specifically designed
for use in media such as air, non-corrosive gases and various liquids compatible with silicon. The stainless
steel housing, fluorosilicone seals and silicon sensing element enables the product to maintain accurate Performance and provide extremely good durability. Available in pressure ranges from 0-50 mbar to 0-1,000 mbar and with electrical outputs of 0-100 mV, 0-5 Vdc, 0-10 Vdc and 4-20 mA.
Applications ALP1000
- Laboratory and test
- Air and gas pressure monitoring
- Leak detection
- Low pressure liquid
- Hydrostatic pressure measurements.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Accuracy | ≤ ±0.5 % of span BFSL |
| Measurement range | 0-50 mbar; 0-100 mbar; 0-250 mbar; 0-500 mbar; 0-1,000 mbar (other ranges available); Absolute ranges from 0-500 mbar |
| Output | 10 mV/V typical (4 wire), 0-5 V (4 or 3 wire), 0-10 V (4 or 3 wire), 4-20 mA (2 wire) |
| Sensor technology | Piezoresistive Silicon or isolated piezoresistive Silicon |
