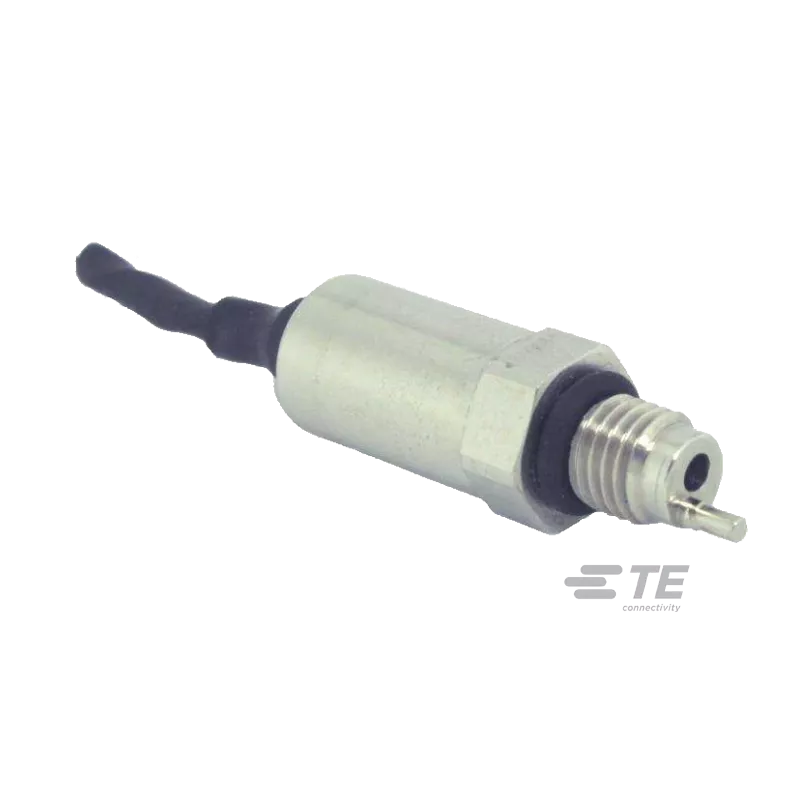

EPRB-3 Miniature Pressure Transducer

Ultra miniature pressure transducer with platinum RTD


Key features

  • Measurement ranges 0 - 3,5 bar to 0 - 700 bar
  • Absolute pressure
  • Combined non-linearity & hysteresis 0.25 %
  • Output signal 0,5 - 4.5 V
  • Supply voltage 8 - 32 VDC or 5 VDC
  • Pressure and temperature measurement
  • Liquid and gas media compatible with SS
  • Pressure port M8x1 or 5/16-24 UNF

About the EPRB-3 Miniature Pressure Transducer

Ultra miniature pressure transducer with platinum RTD to sense media temperature, 100 % stainless steel welded construction with amplified output, designed for severe environment where minimum size and weight are required.

Other features EPRB-3

  • Operating temperature up to 150 °C (300 °F)
  • Miniature design (body diameter: 12 mm)

Applications EPRB-3 Mini Pressure Sensor

  • Motorsports
  • Downhole Exploration
  • Hydraulic Pressures
  • Transportation

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Accuracy 0.25%
Dimensions Dia 13.2 mm [ Dia .52 in ]
Measurement range 0 - 3.5 bar to 0 - 700 bar
Operating temperature -40 to 150 °C [ -40 to 302 °F ]
Options Acceptance Test Report, Compensation Temperature Range, Grid, Shielded Cable
Output 0.5 - 4.5 V [8 - 32 VDC], 0.5 - 4.5 V ratiometric [5 VDC]
Overpressure 1.5X, 2X FS
Port material Stainless Steel
Pressure port/fitting 5/16-24 UNF Male, M8x1 Male
Pressure type absolute
