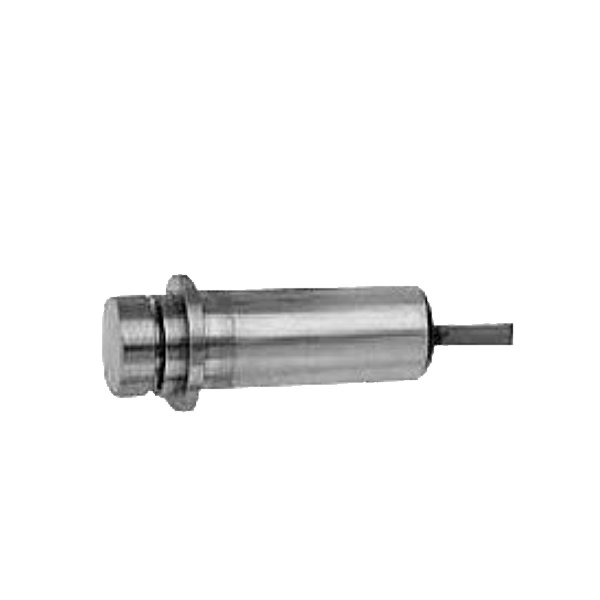

MP40 Miniature Pressure Transducer

Flush mount pressure transducer


Key features

  • Flush-mountable, cost-effective pressure transmitters
  • Absolute or sealed reference options
  • Strong signal / strong full scale
  • Versions with long-term stability
  • High vibration options
  • Manufactured from corrosion-resistant titanium (6AL4V)
  • Excellent performance in corrosive media

About the MP40 Miniature Pressure Transducer

The MP40 model is a miniature pressure transducer with a flush diaphragm for general pressure measurement applications. The transducers are made of corrosion-resistant titanium (6AL4V). The inside of the flush diaphragm is fitted with high-quality semiconductor strain gauges that convert the deflection of the diaphragm into an electrical signal.

Thanks to the hermetically sealed reference side made of titanium, the MP40 series transducers can also be supplied for absolute pressure and reference pressure (enclosed) as an option. The hermetically sealed head section of this option is located directly behind the strain gauge diaphragm area of the sensor. By sealing the sensitive strain gauges, a considerable improvement and reliability of the transducer is achieved. Versions with increased long-term stability and for high vibration resistance, but also with integrated electronics (4 ... 20 mA) are optionally available (for technical data, see separate data sheet MP402).

Applications

  • Process engineering
  • Measuring and testing systems
  • Research and development
  • Laboratory devices and equipment
  • Level measurement
  • Process control

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Acceleration 100g any axis
Accuracy 0.25% to 0.5%
Burst pressure 6.0x Range
Compensated temperature -1 °C to 54 °C (30° to 130°F)
Input resistance (nominal) 1400 ± 400 Ohm
Insulation resistance minimum 50 MOhm @ 50 VDC
Maximum voltage 30 V for short periods
Measurement range 0 - 1 bar to 0 - 700 bar
Media compatibility Liquids & Gases compatible with Titanium 6AL4V
Operating temperature -18°C to 82°C (0° to 180°F)
Output 20 mV/V [5 VDC]
Output resistance (nominal) 850 ± 200 Ohm
Over pressure 2.0x Range
Pressure type gauge, absolute
Usable pressure 3.0x Range
